CTS recommends a ground plane underneath the component, and keeping the input and output traces as short as possible to minimize noise and signal degradation.
CTS recommends using a soldering iron with a temperature range of 250°C to 260°C, and applying a small amount of solder paste to the pads. Avoid applying excessive force or pressure during soldering.
While the datasheet specifies an operating temperature range of -40°C to 85°C, CTS recommends derating the component's performance at temperatures above 70°C to ensure reliable operation.
Yes, the 206-126 is designed to withstand vibrations up to 10g peak acceleration, but CTS recommends securing the component to the PCB using a suitable adhesive or mechanical fastening to prevent damage.
CTS recommends checking the component's input and output signals using an oscilloscope, and verifying that the power supply voltage is within the recommended range. If issues persist, contact CTS technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
206-126 Overview

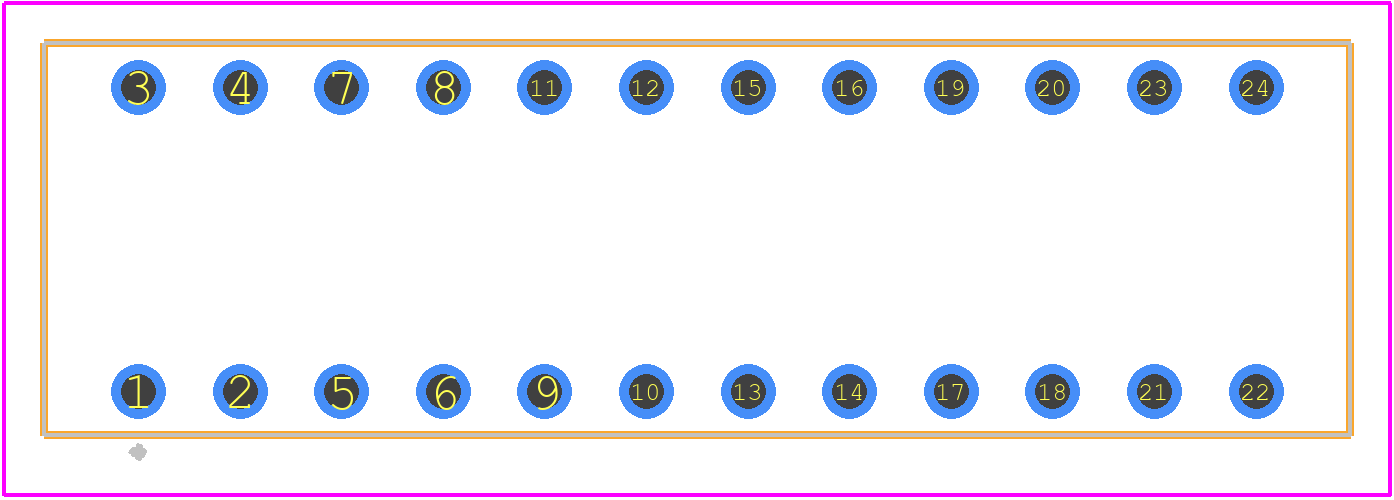

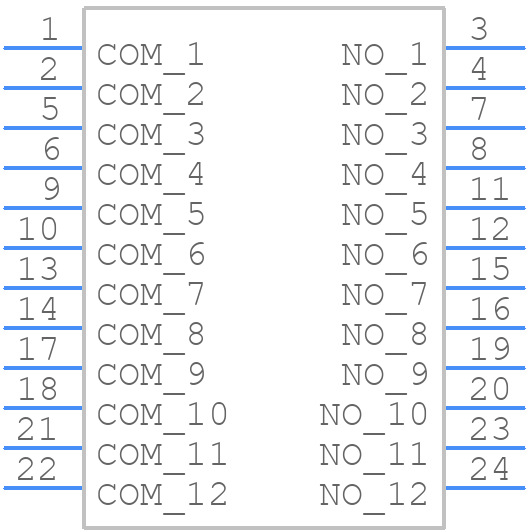

Use the download button to access the 206-126 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 206-1,
or try a keyword search, such as DIP Switches
