CTS Corporation recommends following the IPC-7351 standard for PCB land pattern design. A symmetrical layout with a solid ground plane and minimal signal trace length is recommended for optimal performance and reduced EMI.
CTS recommends using a soldering temperature profile between 235°C to 245°C, with a peak temperature of 240°C. Ensure proper solder wetting, and avoid excessive solder paste or flux. Use a soldering iron with a temperature-controlled tip and a soldering time of 2-3 seconds.
Although the datasheet specifies an operating temperature range of -40°C to 125°C, CTS Corporation recommends derating the component for reliable operation above 100°C. Consult with CTS application engineers for specific guidance on high-temperature applications.
Handle the component by the body, avoiding touching the pins or sensitive areas. Store the component in its original packaging or a similar ESD-protective container, away from direct sunlight, moisture, and extreme temperatures.
Use a gentle cleaning process with a soft-bristled brush and a mild detergent. Avoid using harsh chemicals, ultrasonic cleaning, or high-pressure washing. Dry the component using a soft, lint-free cloth or a low-temperature air blower.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
206-212RAST Overview

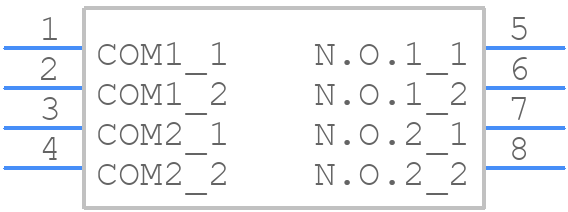

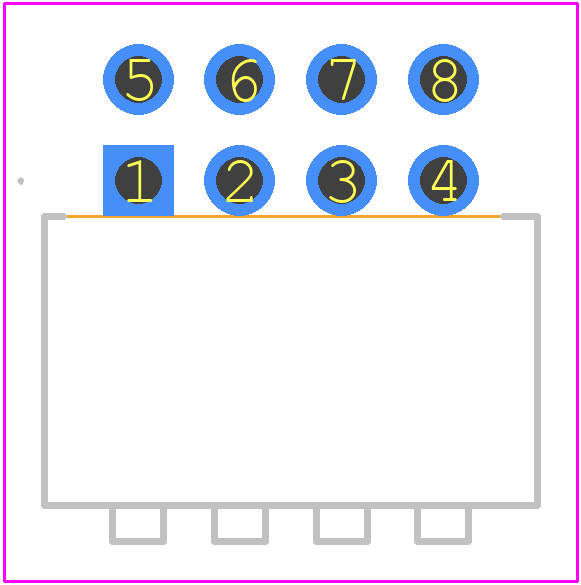

Use the download button to access the 206-212RAST schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 206-2,
or try a keyword search, such as DIP Switches
