CTS recommends a symmetrical PCB layout with a ground plane underneath the sensor to minimize noise and electromagnetic interference. A recommended land pattern is available in the CTS application note AN-107.
Calibration involves adjusting the sensor's output to match the specific requirements of your application. CTS provides a calibration procedure in the datasheet, which involves applying a known input and adjusting the sensor's output to match the desired output. Additionally, CTS offers custom calibration services for specific applications.
While the datasheet specifies an operating temperature range of -40°C to 150°C, the actual operating range may vary depending on the specific application and environmental conditions. It's recommended to consult with CTS engineers to determine the optimal operating temperature range for your specific use case.
To minimize EMI and RFI, CTS recommends using a shielded cable, keeping the sensor away from high-frequency sources, and using a low-pass filter or shielding on the PCB. Additionally, CTS offers EMI-resistant versions of the sensor for specific applications.
The response time of the 206-215 series sensors is typically in the range of 1-10 ms, depending on the specific model and application. This response time may affect the accuracy and latency of your application, and it's essential to consider it when designing your system.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
206-215 Overview

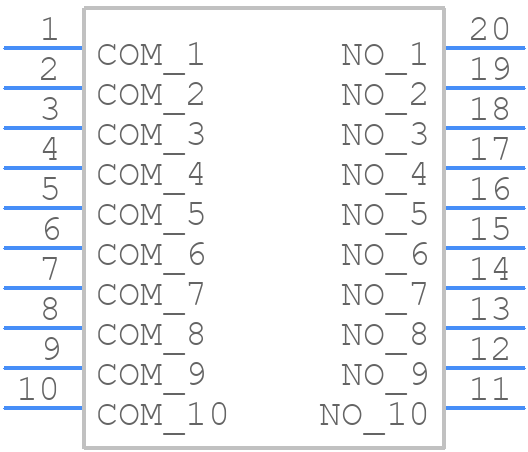

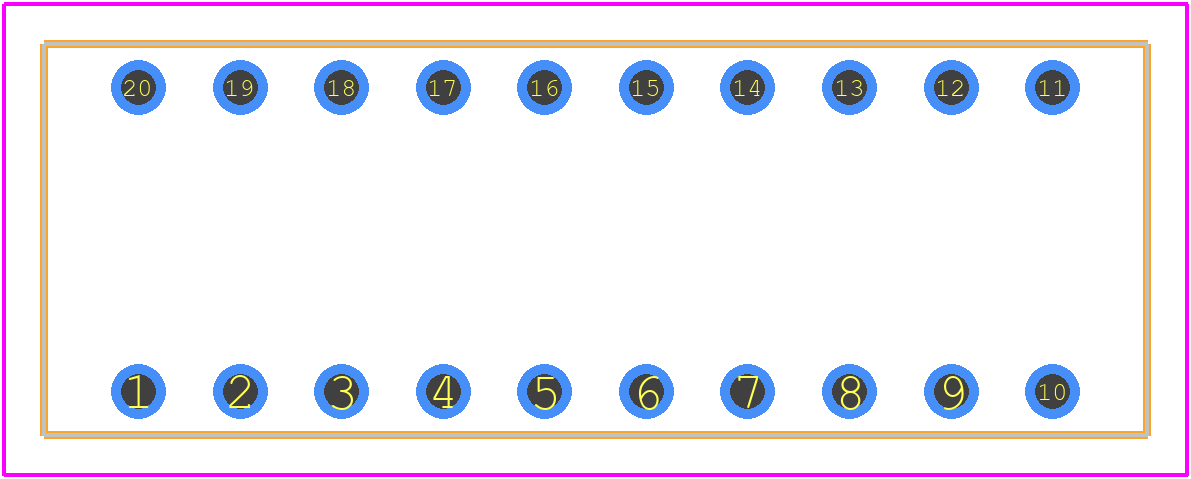

Use the download button to access the 206-215 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 206-2,
or try a keyword search, such as DIP Switches
