Part Image

206-5ST - CTS

Description: 5 Way Through Hole DIP Switch Single Pole Single Throw (SPST), Standard Actuator

Download 206-5ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

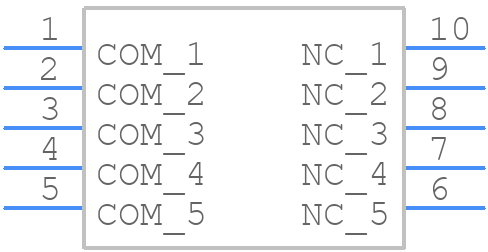

Symbol
206-5ST - CTS - PCB symbol
click to zoom
PCB Footprints
206-5ST - CTS PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 206-5ST
click to zoom

206-5ST Details

  • Manufacturer Part Number:

    206-5ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    6.3

  • Body Breadth:

    9.78 mm

  • Body Height:

    7.6 mm

  • Body Length or Diameter:

    14.88 mm

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    .05A@24VDC

  • Contact Voltage(DC)-Max:

    24 V

  • Electrical Life:

    10000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Hole Count:

    10

  • Packing Method:

    ANTI-STATIC TUBE

  • Sealing:

    EPOXY TERMINAL SEALED; TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Bright Tin (Sn) - with Nickel (Ni) barrier

  • Termination Type:

    SOLDER

206-5ST Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 206-5ST is between 230°C to 250°C for a maximum of 5 seconds.
  • Yes, the 206-5ST is designed to withstand high-vibration environments and is suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • Yes, the 206-5ST is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum operating frequency of the 206-5ST is 100 kHz, making it suitable for use in a wide range of applications including audio, telecommunications, and industrial control systems.
  • Yes, the 206-5ST is designed to operate in high-temperature environments up to 125°C, making it suitable for use in applications such as automotive, aerospace, and industrial control systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

206-5ST Overview

Use the download button to access the 206-5ST schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 206-5, or try a keyword search, such as DIP Switches
