206-6RAST - CTS

Description: Dip Switch SPST 6 Position Through Hole, Right Angle Slide (Standard) Actuator 50mA 24VDC -55°C ~ 85°C

Download 206-6RAST Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 206-6RAST model

Email notifications will be applied after download.

Send part feedback

Symbol

206-6RAST - CTS - PCB symbol

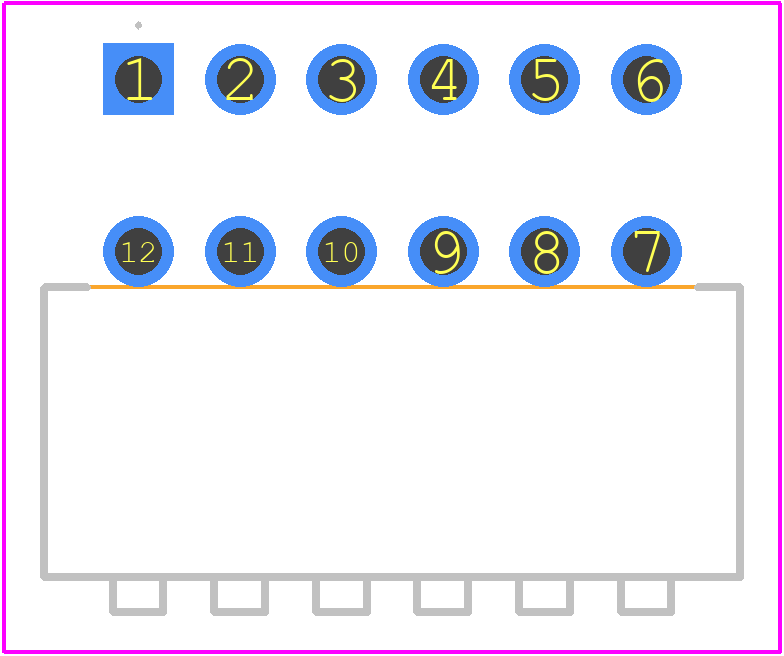

PCB Footprints

206-6RAST - CTS PCB footprint - Other - Other - 206-6RAST-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for 206-6RAST
Part Number 206-6RAST
Manufacturer CTS
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - 206-6RAST-6
Released Date Apr 15, 2022
Last Modified Date May 6, 2026 9:47 AM UTC
Pinout / Pin List Click Here (Member Only)

206-6RAST Details

Manufacturer Part Number:
206-6RAST
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
Package Description:
ROHS COMPLIANT
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.50.90.65
Factory Lead Time:
4 Weeks
Manufacturer:
CTS Corporation
YTEOL:
2
Body Breadth:
9.78 mm
Body Height:
7.62 mm
Body Length or Diameter:
17.42 mm
JESD-609 Code:
e4
Mounting Feature:
THROUGH HOLE-RIGHT ANGLE
Number of Switch Sections:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
PCB Hole Count:
12
Sealing:
BOTTOM SEALED; TOP TAPE SEALED
Surface Mount:
NO
Switch Action:
LATCHED
Switch Function:
SPST
Switch Type:
SLIDE DIP SWITCH
Terminal Finish:
Gold (Au)
Termination Type:
SOLDER

206-6RAST Frequently Asked Questions (FAQs)

The recommended storage temperature range for the 206-6RAST is -40°C to 125°C.
Yes, the 206-6RAST is designed to withstand high-vibration environments, making it suitable for use in industrial and automotive applications.
Yes, the 206-6RAST is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
The typical settling time for the 206-6RAST is 10 ms, although this can vary depending on the specific application and operating conditions.
Yes, the 206-6RAST is designed to meet the requirements of safety-critical applications, such as those found in the automotive and aerospace industries.

Trust Checks

Community Provided

System Verified

Community Approved

206-6RAST Overview

Use the download button to access the 206-6RAST schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 206-6, or try a keyword search, such as DIP Switches
