206-8LPST - CTS

206-8LPST Details

• Manufacturer Part Number:

  206-8LPST

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  CTS Corporation

• YTEOL:

  5.7

• Additional Feature:

  LOW PROFILE

• Body Breadth:

  9.78 mm

• Body Height:

  7.6 mm

• Body Length or Diameter:

  22.5 mm

• Contact Current(DC)-Max:

  0.05 A

• Contact (DC) Max Rating R Load:

  .05A@24VDC

• Contact Voltage(DC)-Max:

  24 V

• Electrical Life:

  10000 Cycle(s)

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

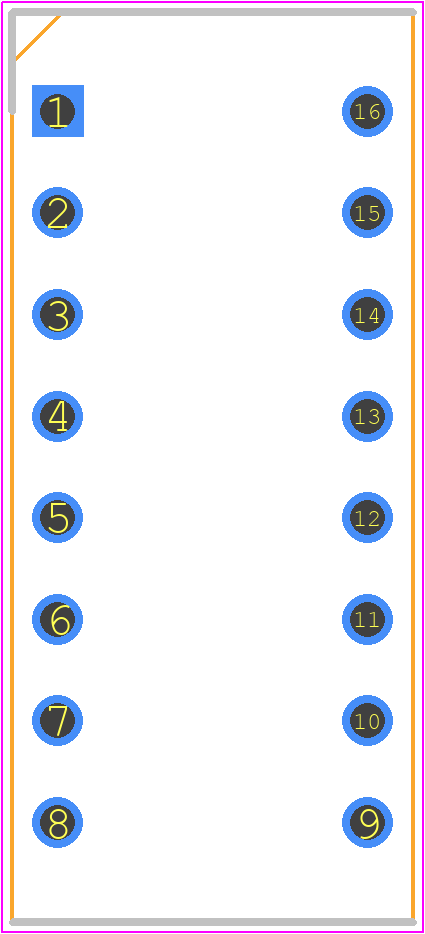

• PCB Hole Count:

  16

• Packing Method:

  ANTI-STATIC TUBE

• Sealing:

  EPOXY TERMINAL SEALED; TOP TAPE SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Finish:

  Gold (Au)

• Termination Type:

  SOLDER
