206-8ST - CTS

206-8ST Details

• Manufacturer Part Number:

  206-8ST

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  CTS Corporation

• YTEOL:

  5.7

• Actuator Length:

  0.035 inch

• Actuator Type:

  SLIDE TYPE

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  9.78 mm

• Body Height:

  7.6 mm

• Body Length or Diameter:

  22.5 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.05 A

• Contact (DC) Max Rating R Load:

  .05A@24VDC

• Contact Function:

  OFF-ON

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e3

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  2

• Number of Switch Sections:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

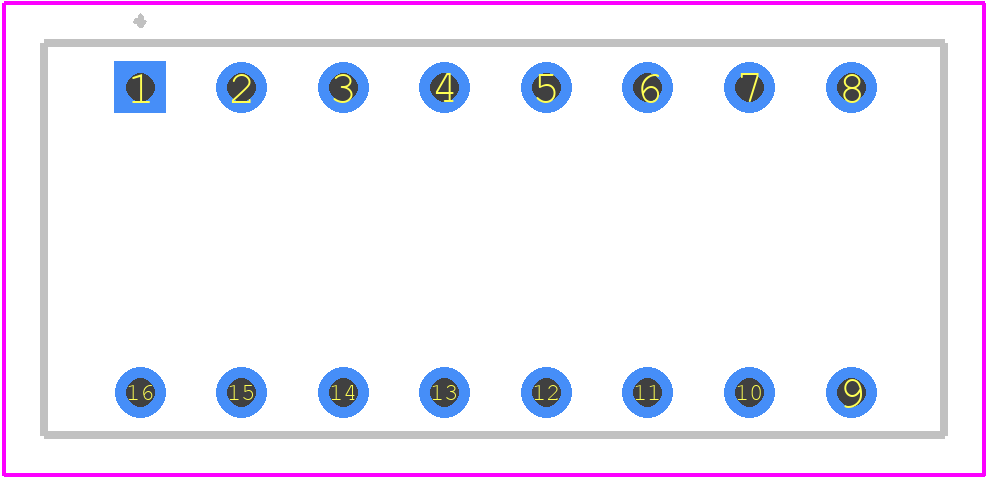

• PCB Hole Count:

  16

• Packing Method:

  ANTI-STATIC TUBE

• Sealing:

  EPOXY TERMINAL SEALED; TOP TAPE SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Finish:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Terminal Length:

  0.15 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
