Part Image

2068321001 - Molex

Description: Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 10 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Black, Tray

Download 2068321001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2068321001 - Molex - PCB symbol
click to zoom

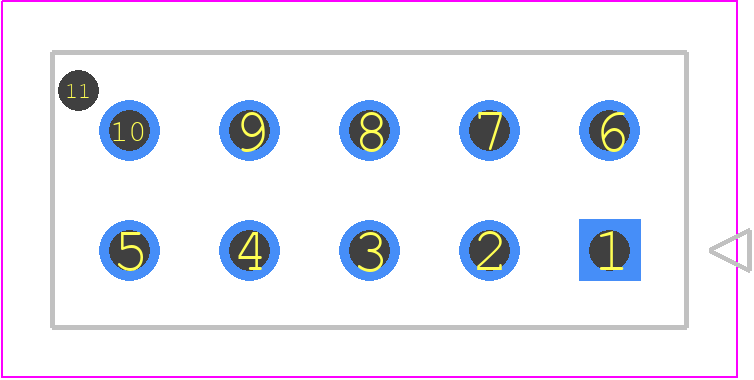

PCB Footprints
2068321001 - Molex PCB footprint - Other - Other - 20683210YY
click to zoom
3D Models
2068321001 - Molex - 3D model - Other - 20683210YY
click to zoom

2068321001 Details

  • Manufacturer Part Number:

    2068321001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 12.5A, POLARIZED

  • Body Breadth:

    0.3 inch

  • Body Length:

    0.62 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    206461

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

2068321001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs).
  • Yes, the 2068321001 is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications.
  • The 2068321001 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
  • The operating temperature range for the 2068321001 is -40°C to 105°C (-40°F to 221°F).
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes from AWG 18 to AWG 26. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2068321001 Overview

Use the download button to access the 2068321001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20683, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
