2068321601 - Molex

Description: Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 16 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Black, Tray

Download 2068321601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2068321601 - Molex - PCB symbol
click to zoom
PCB Footprints

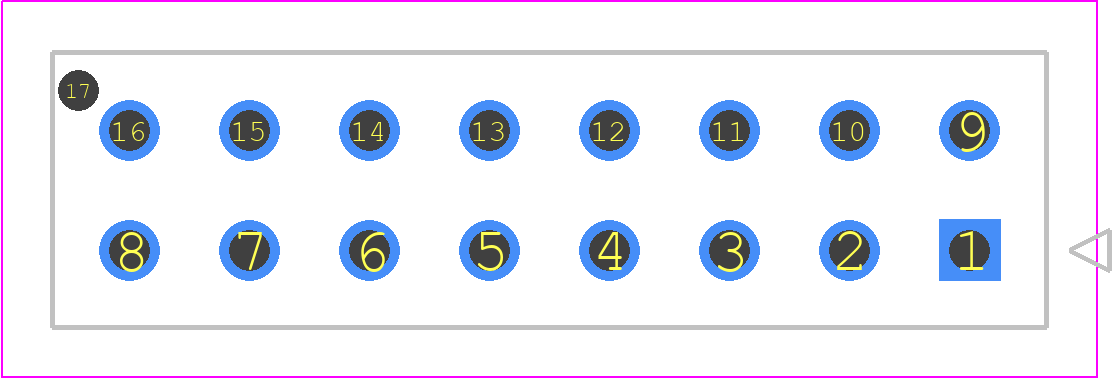

2068321601 - Molex PCB footprint - Other - Other - 20683216YY
click to zoom
3D Models
2068321601 - Molex - 3D model - Other - 20683216YY
click to zoom

2068321601 Details

  • Manufacturer Part Number:

    2068321601

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 12.5A, POLARIZED, SHROUDED

  • Body Breadth:

    0.27 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    0.978 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

2068321601 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 2068321601 connector is 50 cycles, as specified by Molex.
  • Yes, the 2068321601 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • The operating temperature range for the 2068321601 connector is -40°C to 125°C, as specified by Molex.
  • The 2068321601 connector is rated for a maximum current of 3A per contact. If your application requires higher currents, you may need to consider a different connector or consult with a Molex representative.
  • Yes, the 2068321601 connector is designed for automated assembly and is compatible with standard pick-and-place machines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2068321601 Overview

Use the download button to access the 2068321601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20683, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
