2068322001 - Molex

Description: Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 20 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Black, Tray

Download 2068322001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2068322001 - Molex - PCB symbol
click to zoom
PCB Footprints

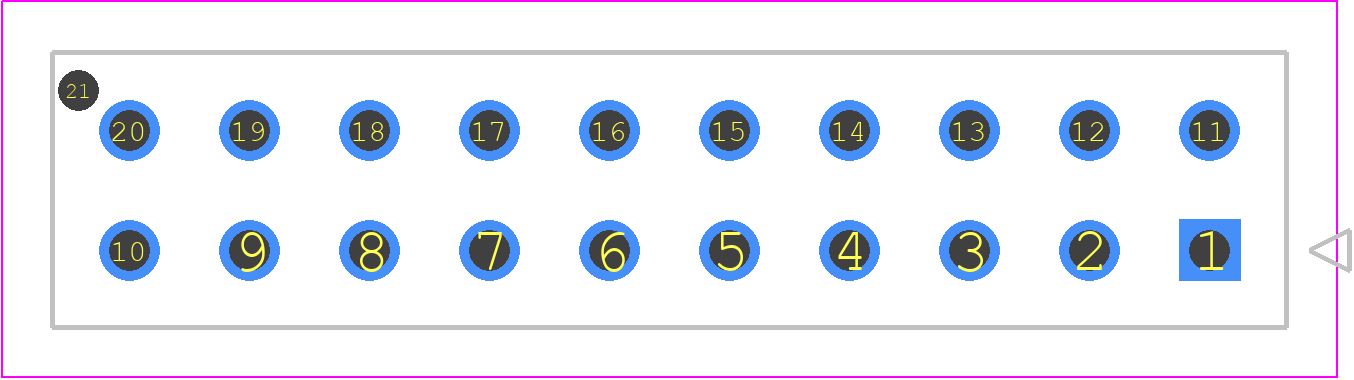

2068322001 - Molex PCB footprint - Other - Other - 20683220YY
click to zoom
3D Models
2068322001 - Molex - 3D model - Other - 20683220YY
click to zoom

2068322001 Details

  • Manufacturer Part Number:

    2068322001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 12.5A, POLARIZED, SHROUDED

  • Body Breadth:

    0.27 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    1.215 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

2068322001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs).
  • Yes, the 2068322001 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The 2068322001 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m (3.3ft) for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
  • The 2068322001 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate wire sizes from AWG 18 to AWG 26. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.
