206852-8 - TE Connectivity

Description: Configuration Features: Number of Positions 9 | Number of Power Positions 0 | Number of Signal Positions 9 | Contact Features: Contact Type Pin | Contact Protection With | Reverse Gender No | Contact Current Rating (Max) 7.5 AMP | Dimensions: Compatible Insulation Diameter Range .068 INCH | Compatible Insulation Diameter Range 1.73 MM | Electrical Characteristics: Operating Voltage 250 VAC | Operating Voltage 250 VDC | Housing Features: Housing Material Thermoplastic | Housing Color Black | Circular Connect

Download 206852-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
206852-8 - TE Connectivity - PCB symbol
click to zoom

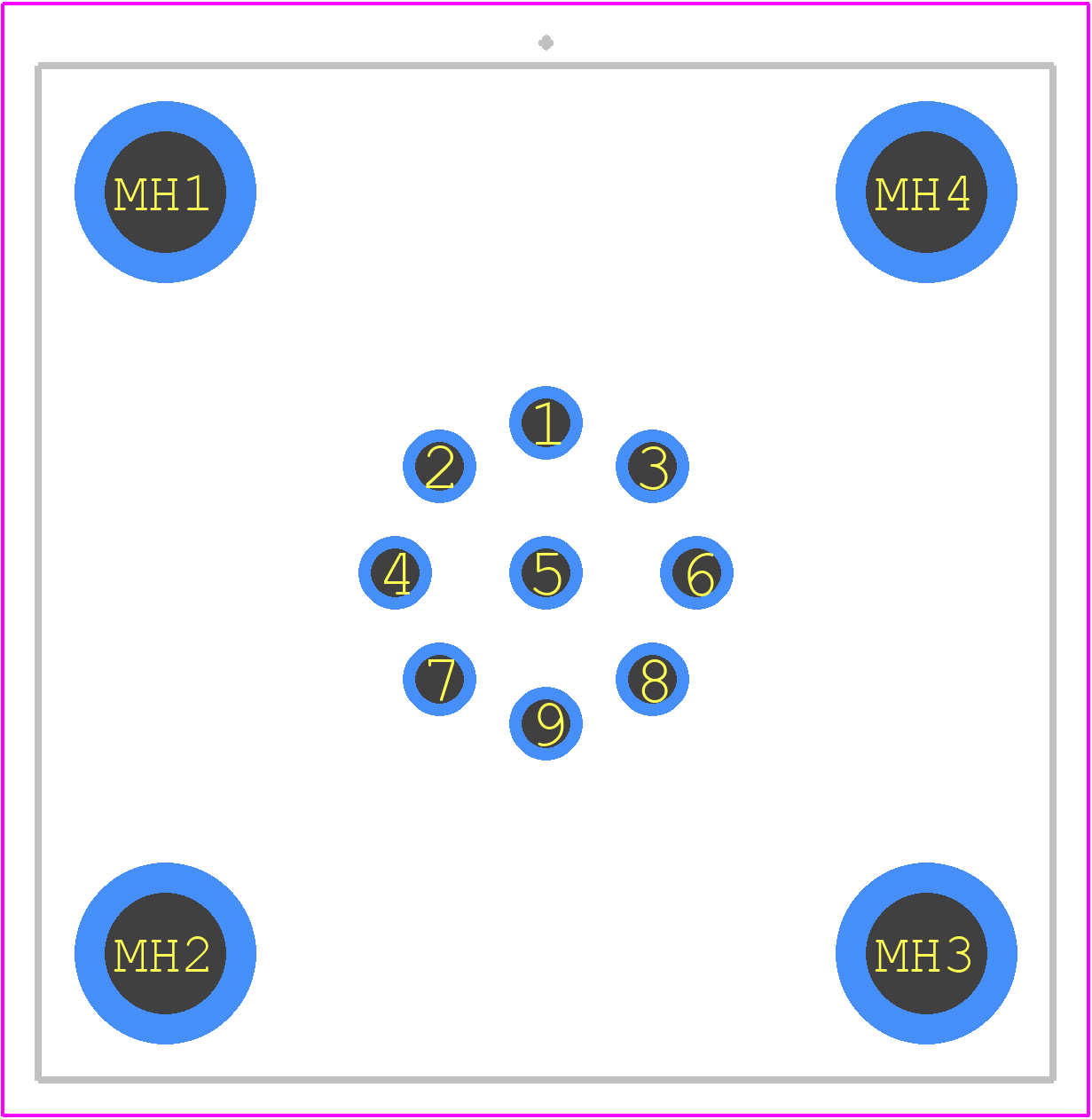

PCB Footprints
206852-8 - TE Connectivity PCB footprint - Other - Other - 206852-8-1
click to zoom
3D Models
206852-8 - TE Connectivity - 3D model - Other - 206852-8-1
click to zoom

206852-8 Details

  • Manufacturer Part Number:

    206852-8

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    COMPATIBLE CONTACTS: 66507-3; 66507-9; 66682-2; 66570-2; 66570-3

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Diameter-Min:

    0.068 inch

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    7.5A

  • Mating Information:

    206485-1

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    7.5 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Shell Size:

    11

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

206852-8 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 206852-8 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 206852-8 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 206852-8 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The 206852-8 connector has a mating cycle life of at least 500 cycles. However, this may vary depending on the application, usage, and environmental conditions. Consult TE Connectivity's documentation and technical support for more information.
