2071566-5 - TE Connectivity

Description: Body Features: Body Material Polycarbonate | Contact Features: Pole Configuration 4 | Relay Socket Type Solder | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Type Features: Relay Accessory Type Socket | Termination Features: Number of Pins 14 |

Download 2071566-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2071566-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

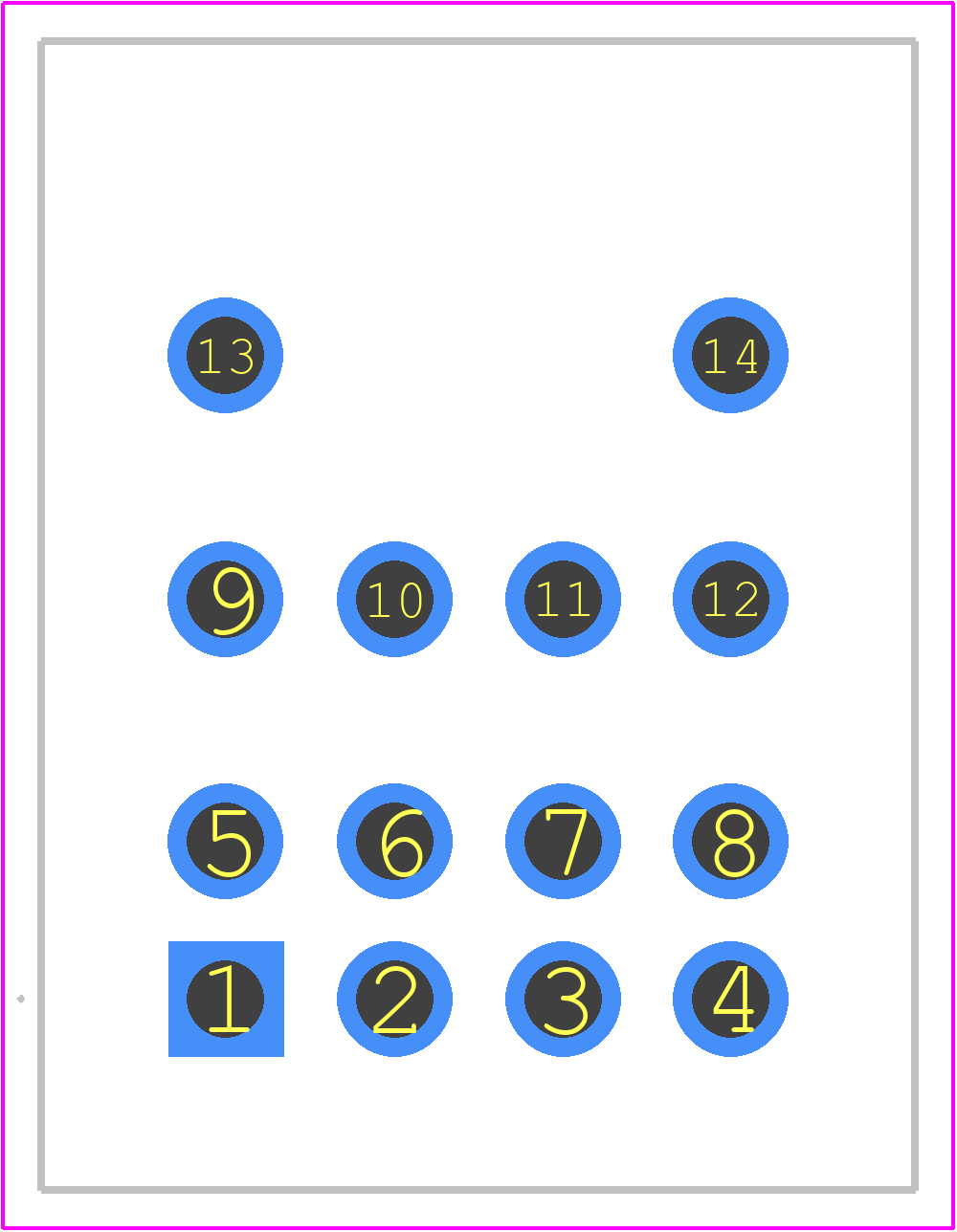

2071566-5 - TE Connectivity PCB footprint - Other - Other - 2071566-5-2
click to zoom
3D Models
2071566-5 - TE Connectivity - 3D model - Other - 2071566-5-2
click to zoom

2071566-5 Details

  • Manufacturer Part Number:

    2071566-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Housing Material:

    POLYCARBONATE

  • Number of Contacts:

    14

  • Termination Type:

    SOLDER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2071566-5 Overview

Use the download button to access the 2071566-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20715, or try a keyword search, such as Sockets and Chip Carriers
