Part Image

2074790005 - Molex

Description: KK Plus 396 Header, 3.96mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg

Download 2074790005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2074790005 - Molex - PCB symbol
click to zoom

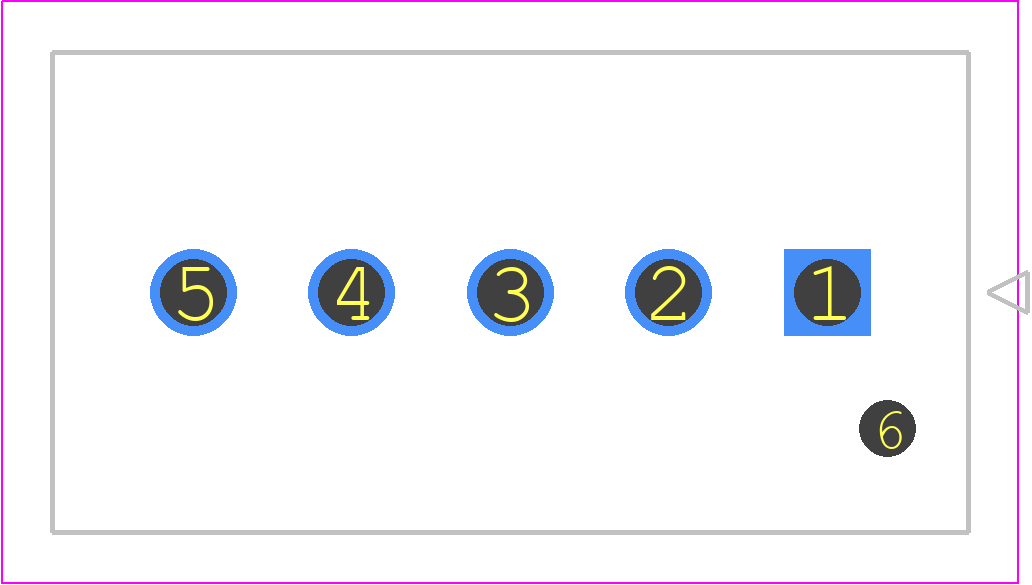

PCB Footprints
2074790005 - Molex PCB footprint - Other - Other - 2074790005
click to zoom
3D Models
2074790005 - Molex - 3D model - Other - 2074790005
click to zoom

2074790005 Details

  • Manufacturer Part Number:

    2074790005

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED; RATED CURRENT(POWER):11A

  • Body Breadth:

    0.472 inch

  • Body Depth:

    0.602 inch

  • Body Length:

    0.901 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA;IEC;UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

2074790005 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 2074790005 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 2074790005 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 2074790005 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 2074790005 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The operating temperature range for the 2074790005 connector is -40°C to 105°C. However, it's essential to note that the connector's performance may degrade at extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2074790005 Overview

Use the download button to access the 2074790005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20747, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
