207532-8 - TE Connectivity

207532-8 Details

• Manufacturer Part Number:

  207532-8

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  36 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  6.65

• Board Mounting Option:

  HOLE .125-.137

• Body Breadth:

  0.8 inch

• Body Depth:

  0.565 inch

• Body Length:

  1.203 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  RACK AND PANEL CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Durability:

  250 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  4.8928 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE66

• MIL Conformance:

  NO

• Mains Connector Rating:

  7.5A

• Mating Contact Pitch:

  0.197 inch

• Mating Contact Row Spacing:

  0.197 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  LATCHING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  6

• Number of Ports:

  1

• Number of Rows Loaded:

  6

• Operating Temperature-Max:

  130 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

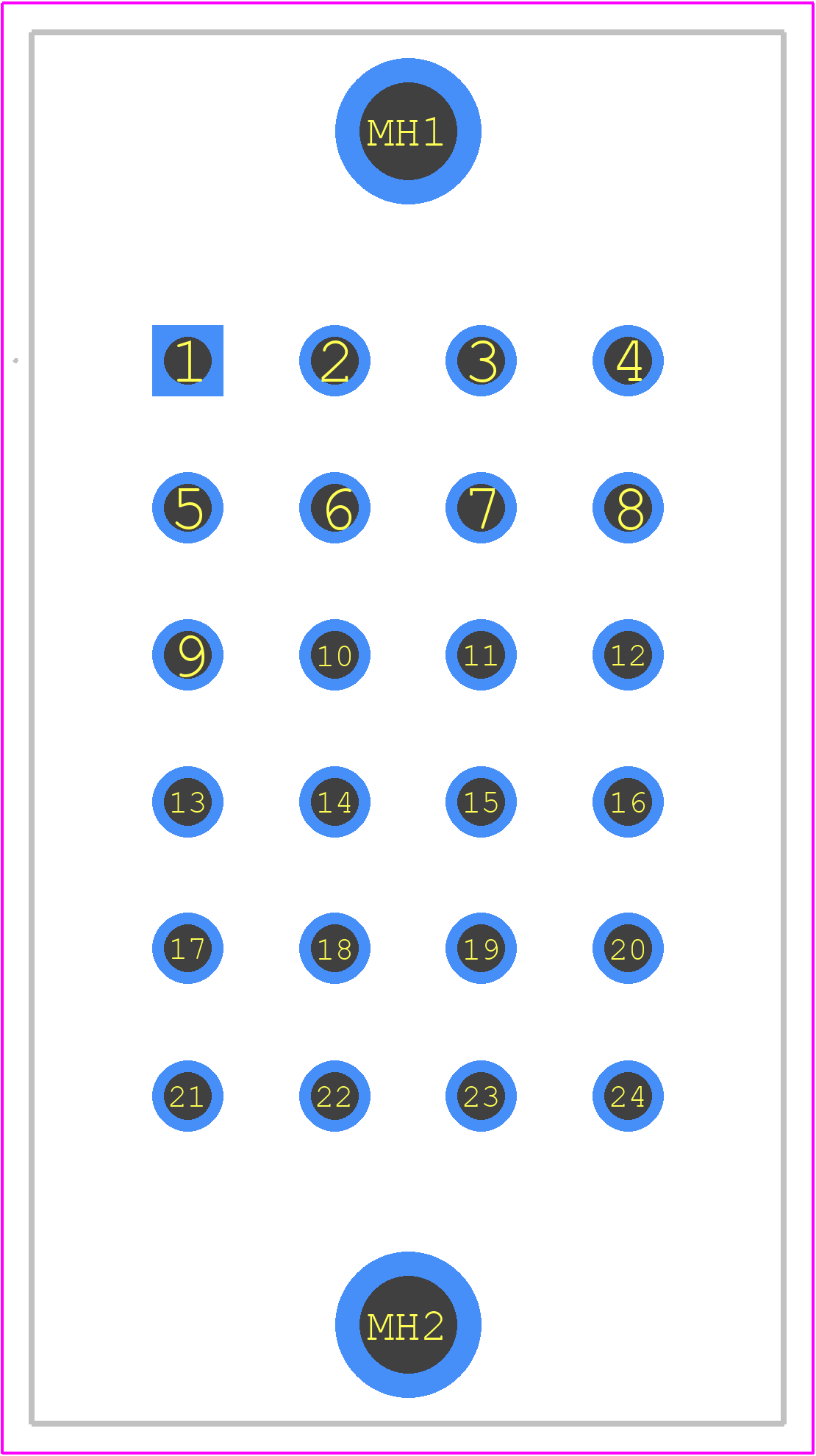

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.0038 mm

• Panel Mount:

  NO

• Plating Thickness:

  150u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  7.5 A

• Rated Voltage:

  600 V

• Reference Standard:

  CSA, UL, V

• Terminal Length:

  0.181 inch

• Terminal Pitch:

  5 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  24

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .278 N
