- Part Number 207583-3
- Manufacturer TE Connectivity
- Pin Count 8
- Part Category Connector
- Package Category Other

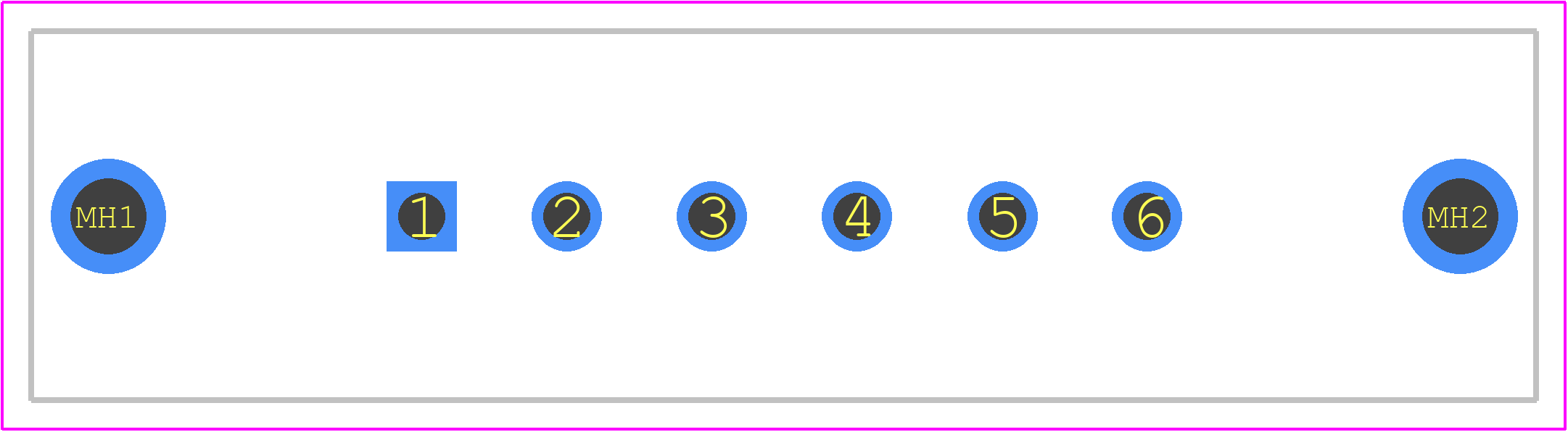

- Footprint Name Other - 207583-3-2
- Released Date Mar 29, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
207583-3 Details
-
Manufacturer Part Number:
207583-3
-
Brand Name:
AMP
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Additional Feature:
PIN HEADER
-
Body Breadth:
0.5 inch
-
Body Depth:
0.689 inch
207583-3 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
-
Yes, the 207583-3 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 207583-3 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector may require additional protection or coatings for extreme environmental conditions.
-
While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 207583-3 connector. However, it's crucial to ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during installation.
-
Yes, it's essential to follow proper PCB layout guidelines for the 207583-3 connector to ensure reliable connections and prevent damage. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, and using a solder mask to prevent solder bridging.
Trust Checks
Expert Contribution
System Verified
Community Approved
207583-3 Overview
Use the download button to access the 207583-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20758,
or try a keyword search, such as Combination Line Connectors
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
