CTS recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
The 208-12ST has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device.
CTS recommends a soldering profile with a peak temperature of 240°C ± 5°C, a dwell time of 30-60 seconds, and a preheat temperature of 150°C ± 10°C to ensure reliable solder joints.
The 208-12ST is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use additional mechanical support, such as a bracket or adhesive, to ensure the device remains securely attached to the PCB.
To troubleshoot output issues, check the input voltage, ensure proper PCB layout and grounding, and verify that the device is operating within its specified temperature range. If issues persist, consult the datasheet or contact CTS Corporation's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
208-12ST Overview

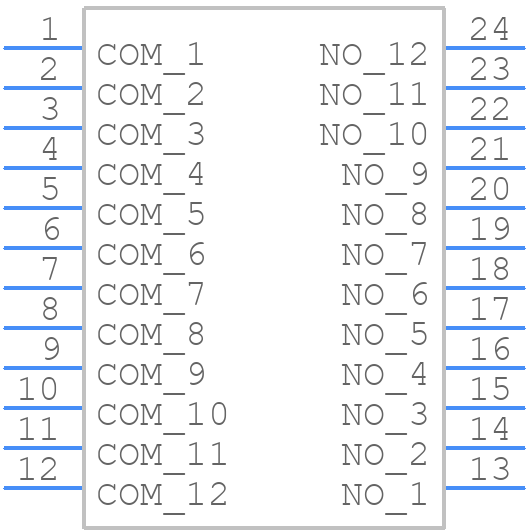

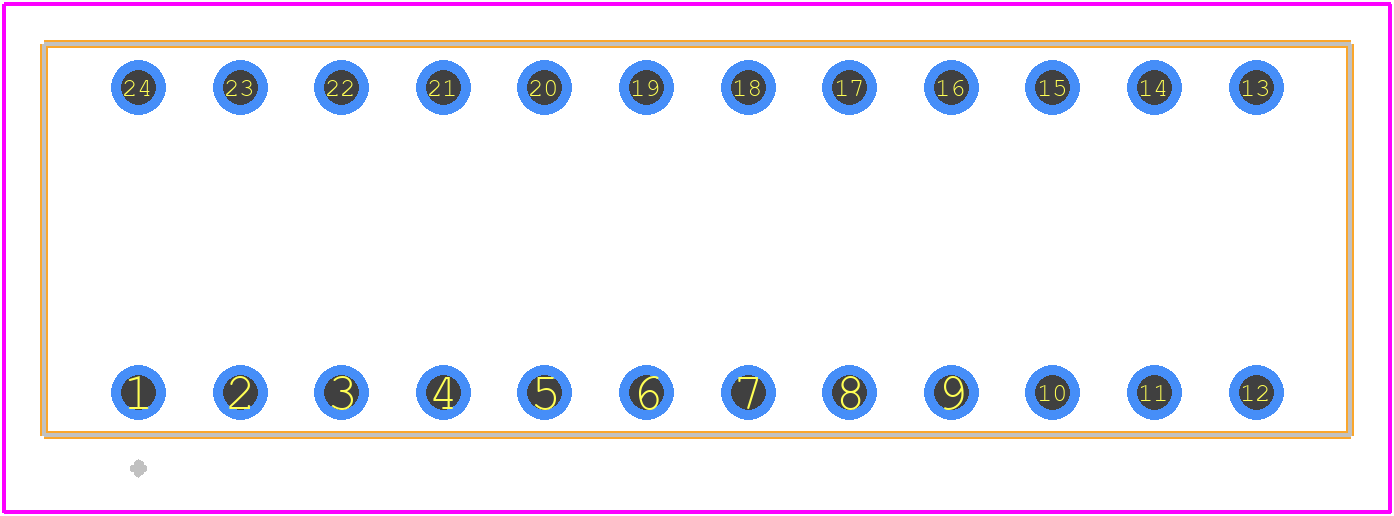

Use the download button to access the 208-12ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 208-1,
or try a keyword search, such as DIP Switches
