Part Image

208-6 - CTS

Description: 6 Way Through Hole DIP Switch Single Pole Single Throw (SPST), Standard Actuator

Download 208-6 Model

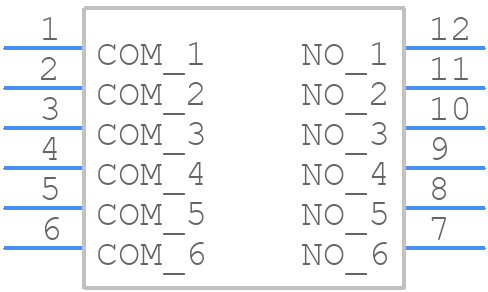

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

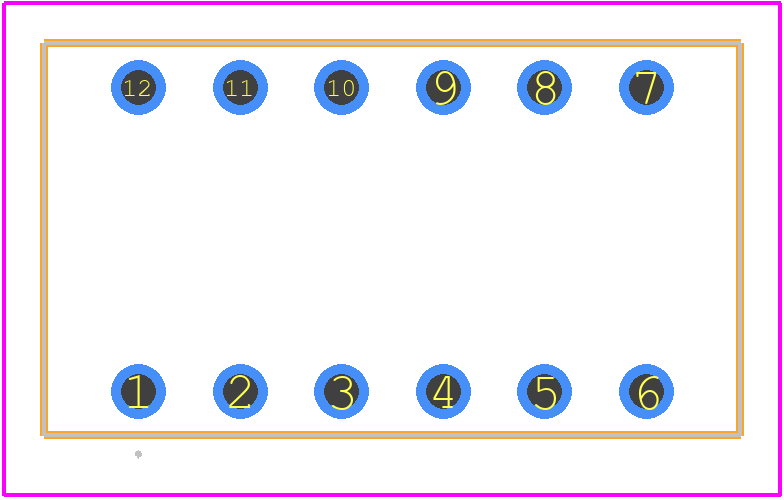

208-6 - CTS PCB footprint - Other - Other - 208-6-3
click to zoom
3D Models
208-6 - CTS  - 3D model - Other - 208-6-3
click to zoom

208-6 Details

  • Manufacturer Part Number:

    208-6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    6.1

  • Body Breadth:

    9.78 mm

  • Body Height:

    7.6 mm

  • Body Length or Diameter:

    17.42 mm

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    .05A@24VDC

  • Contact Voltage(DC)-Max:

    24 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    ANTI-STATIC TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

208-6 Overview

Use the download button to access the 208-6 schematic symbol, PCB footprint, and 3D model.
