2081956-1 - TE Connectivity

Description: RF Switch Connector, Receptacle, 50 ohm, 11 GHz Operating Frequency, Cable-to-Board, 4 Position, Printed Circuit Board, -40 – 85 °C [-40 – 185 °F]

Download 2081956-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

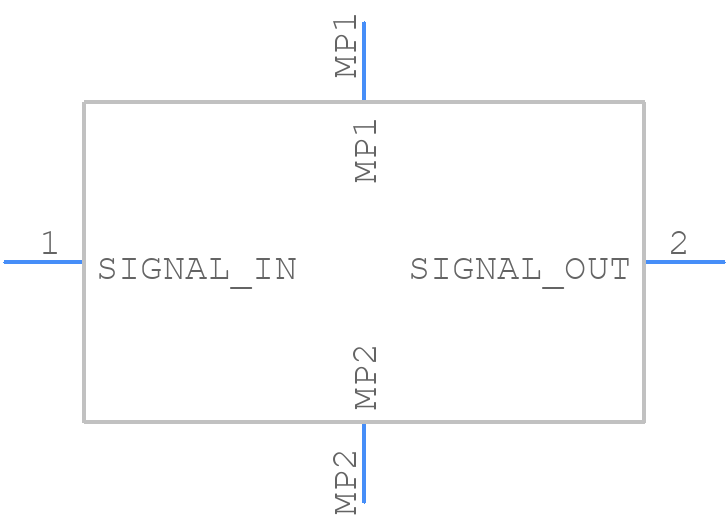

Symbol
2081956-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2081956-1 - TE Connectivity PCB footprint - Other - Other - 2081956-1-2
click to zoom
3D Models
2081956-1 - TE Connectivity - 3D model - Other - 2081956-1-2
click to zoom

2081956-1 Details

  • Manufacturer Part Number:

    2081956-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    6 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF UMCC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Frequency-Max:

    11 GHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.1 A

  • Shell Finish:

    GOLD FLASH

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.028 inch

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    2

2081956-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
  • Yes, the 2081956-1 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow TE Connectivity's guidelines for vibration testing and validation.
  • The 2081956-1 connector has a IP67 rating, making it suitable for outdoor use and harsh environments, but it's essential to follow proper sealing and installation procedures to maintain the IP rating.
  • The 2081956-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the connector's performance at extreme temperatures.
  • Yes, the 2081956-1 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors, but it's recommended to verify compatibility before designing your system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2081956-1 Overview

Use the download button to access the 2081956-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20819, or try a keyword search, such as Other RF Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
