208457096001049 - Kyocera AVX

Description: CONN DIN RCPT 96POS PCB GOLD

Download 208457096001049 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
208457096001049 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

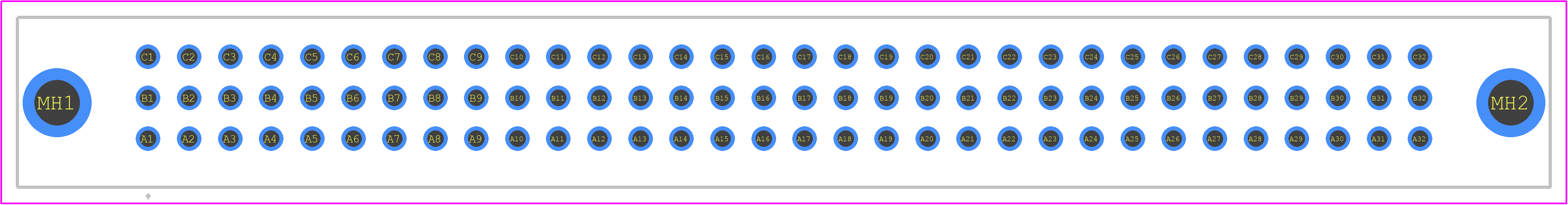

208457096001049 - Kyocera AVX PCB footprint - Other - Other - 208457096001049-2
click to zoom
3D Models
208457096001049 - Kyocera AVX - 3D model - Other - 208457096001049-2
click to zoom

208457096001049 Details

  • Manufacturer Part Number:

    208457096001049

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: DIN 41612, POLARIZED

  • Body Breadth:

    0.528 inch

  • Body Depth:

    0.456 inch

  • Body Length:

    3.736 inch

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    YES

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .834 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    A,B,C

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    3

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    SHRD ENDS

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.177 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .139 N

208457096001049 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 208457096001049 can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. It's essential to follow the recommended land pattern to ensure proper soldering and component reliability.
  • To prevent damage, it's recommended to handle the 208457096001049 component by the edges, avoiding touching the terminations or the ceramic body. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage. Additionally, avoid bending or flexing the component during assembly.
  • The maximum storage temperature for the 208457096001049 is typically 40°C (104°F), and the maximum storage humidity is 90% RH. It's essential to store the component in a dry, cool place, away from direct sunlight and moisture, to prevent degradation or damage.
  • The 208457096001049 is designed to meet standard vibration and shock requirements, but it's essential to consult with Kyocera AVX Components or a qualified engineer to determine if the component can withstand the specific vibration or shock requirements of your application.
  • To ensure reliable connections, it's recommended to follow the Kyocera AVX Components' soldering guidelines, which typically include using a soldering iron with a temperature range of 230°C to 250°C (446°F to 482°F), and a solder with a melting point of 180°C to 220°C (356°F to 428°F). Avoid using excessive soldering temperature or time, as this can damage the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

208457096001049 Overview

Use the download button to access the 208457096001049 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20845, or try a keyword search, such as Headers and Edge Type Connectors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
