2085945-4 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 2 x 1 | Number of Positions 76 | Number of Rear EONs per Port Column 0 | Number of Ports 2 | Contact Features: Contact Underplating Material Tin | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Mating Area Plating Material Gold | PCB Contact Termination Area Plating Material Gold | Contact Mating Area Plating Material Thickness .76 MICM | Dimensions: PCB Thickness (Recommended) 1.57 MM | PCB Thickness (Recommended) .062 INCH | Electrical C

Download 2085945-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2085945-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

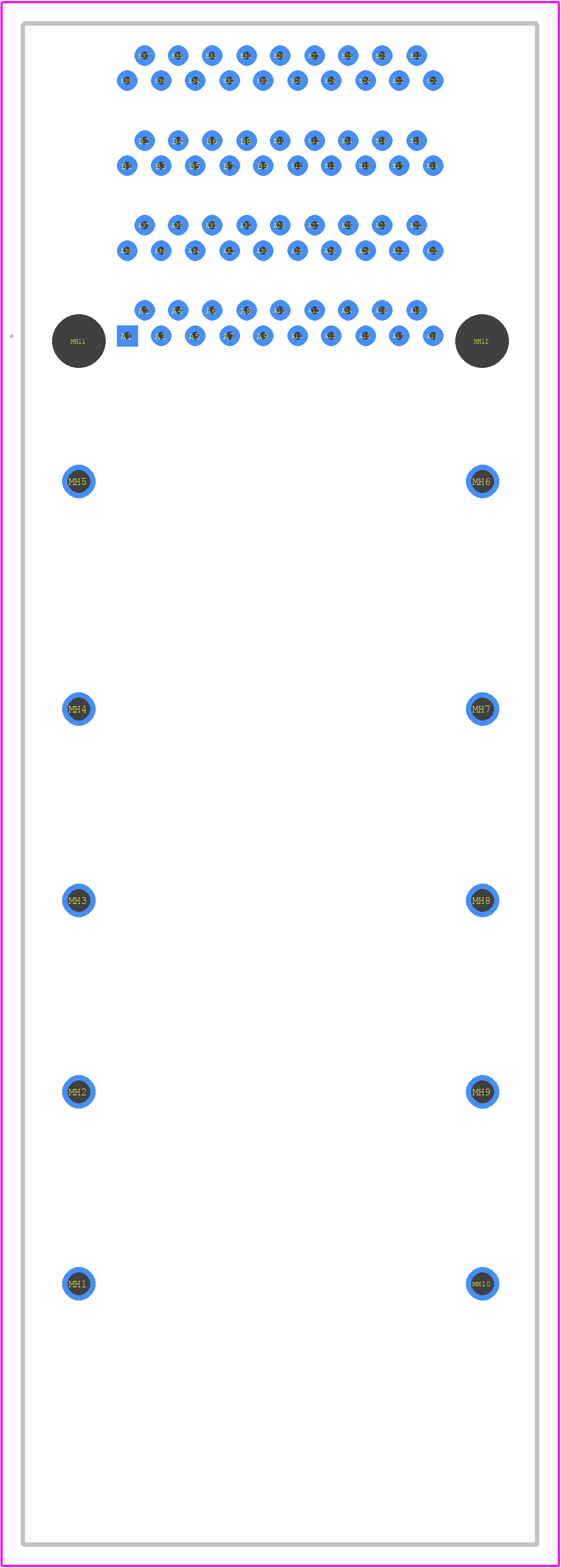

2085945-4 - TE Connectivity PCB footprint - Other - Other - 2085945-4-2
click to zoom
3D Models
2085945-4 - TE Connectivity - 3D model - Other - 2085945-4-2
click to zoom

2085945-4 Details

  • Manufacturer Part Number:

    2085945-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Terminal Length:

    0.08 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    76

  • UL Flammability Code:

    94V-0

2085945-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2085945-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 2085945-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • The 2085945-4 connector has a sealed design that provides protection against moisture and humidity. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for use in environments with exposure to specific chemicals or extreme conditions.
