Technical Content
Part Image

208658-1001 - Molex

Description: HDMI, Displayport & DVI Connectors 0.5mm HDMI Recep RA 19CKT

Download 208658-1001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

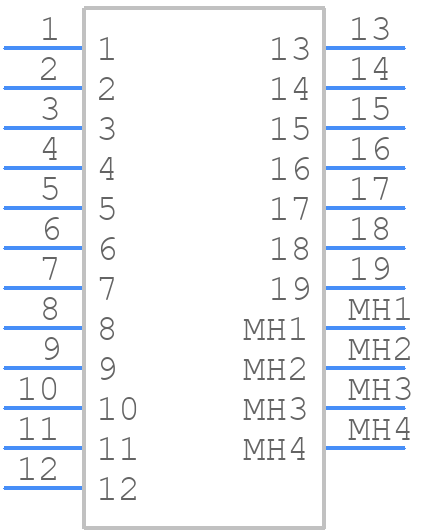

208658-1001 - Molex - PCB symbol
click to zoom
PCB Footprints

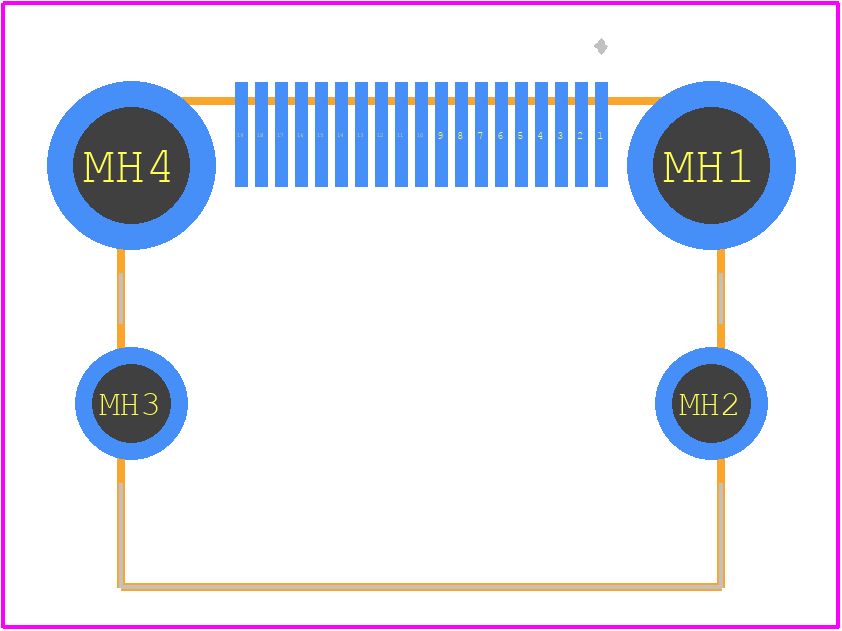

208658-1001 - Molex PCB footprint - Other - Other - 208658-1001-1
click to zoom
3D Models
208658-1001 - Molex - 3D model - Other - 208658-1001-1
click to zoom

208658-1001 Details

  • Manufacturer Part Number:

    208658-1001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7.7

  • Connector Type:

    DISPLAYPORT CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    19

208658-1001 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 2086581001 connector is 50 cycles minimum, as per Molex's general specifications.
  • While the 2086581001 connector is designed to withstand some level of vibration, it's essential to consult Molex's vibration testing standards and perform application-specific testing to ensure the connector meets your specific requirements.
  • The 2086581001 connector is rated for operating temperatures between -40°C to 105°C. If your application exceeds these limits, you should consult Molex's high-temperature connector options or perform application-specific testing.
  • The recommended torque for the 2086581001 connector is typically specified in the datasheet or can be found in Molex's general specifications. However, it's essential to consult the specific torque recommendations for your application to ensure proper mating and to prevent damage.
  • The 2086581001 connector is designed for automated assembly processes, but it's crucial to consult Molex's guidelines for automated assembly to ensure compatibility with your specific manufacturing process.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

208658-1001 Overview

Use the download button to access the 208658-1001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20865, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
