Part Image

209-10LPST - CTS

Description: DIP Switches / SIP Switches SPST 10 switch sections

Download 209-10LPST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
209-10LPST - CTS - PCB symbol
click to zoom
PCB Footprints

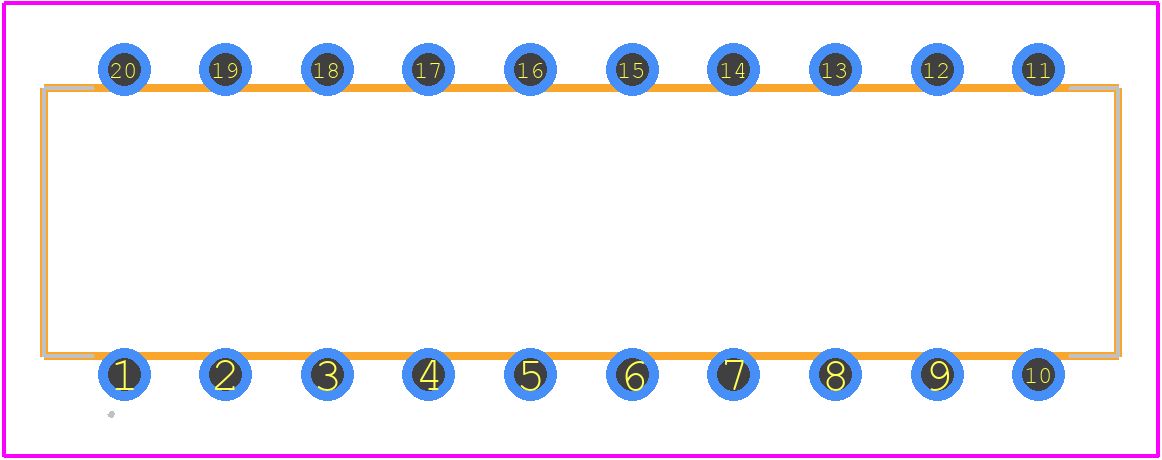

209-10LPST - CTS PCB footprint - Other - Other - 209-10LPST-3
click to zoom
3D Models
209-10LPST - CTS - 3D model - Other - 209-10LPST-3
click to zoom

209-10LPST Details

  • Manufacturer Part Number:

    209-10LPST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    6.9

  • Body Breadth:

    6.7 mm

  • Body Height:

    3.8 mm

  • Body Length or Diameter:

    26.87 mm

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    .1A@20VDC

  • Contact Voltage(DC)-Max:

    20 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    20

  • Packing Method:

    ANTI-STATIC TUBE

  • Sealing:

    BOTTOM SEALED; TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

209-10LPST Frequently Asked Questions (FAQs)

  • CTS Corporation provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and reduce electromagnetic interference (EMI).
  • While the datasheet provides temperature and humidity ratings, engineers may want to know how the device performs in extreme conditions. CTS Corporation may provide additional information on environmental testing and reliability in their application notes or through direct communication.
  • CTS Corporation may provide a recommended soldering profile in their application notes or design guides. This information is crucial to ensure proper soldering and to prevent damage to the device during the assembly process.
  • While the datasheet provides general information on the device's reliability, engineers may want to know if it's suitable for high-reliability applications. CTS Corporation may provide additional information on the device's reliability, failure rates, and long-term stability through direct communication or in their application notes.
  • CTS Corporation may provide guidelines on EMI shielding and grounding in their application notes or design guides. Proper EMI shielding and grounding are crucial to ensure the device's performance and to meet regulatory requirements.
