2091-1408 - Wago

Description: THT male header; 1.0 mm Ø solder pin; straight; Pin spacing 3.5 mm; 8-pole

Download 2091-1408 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2091-1408 - Wago - PCB symbol
click to zoom
PCB Footprints

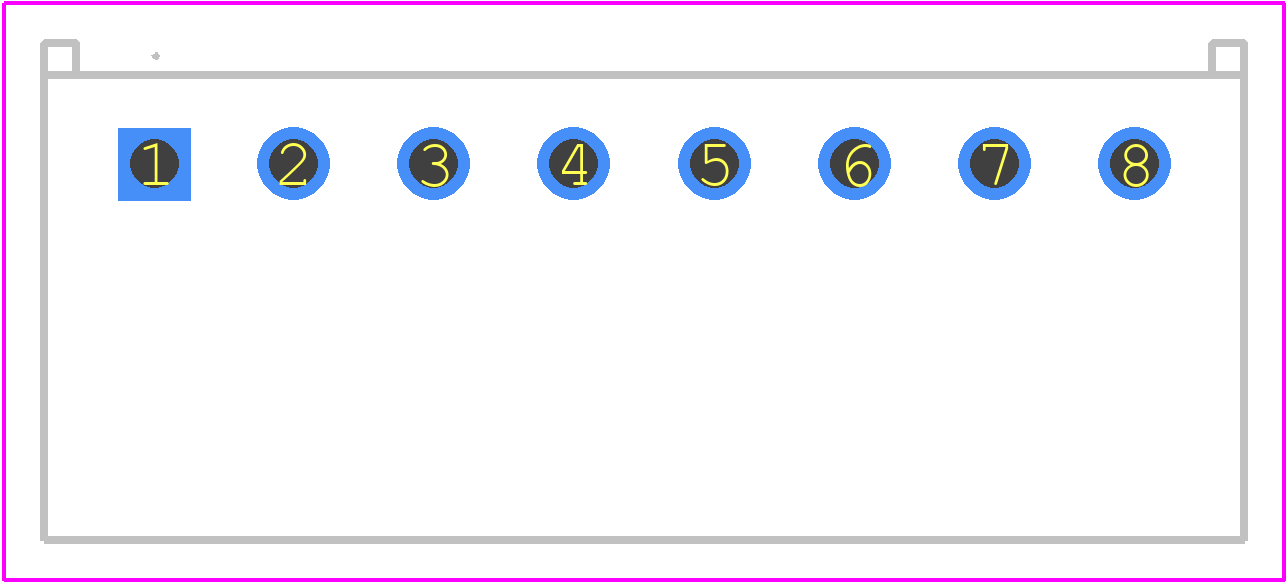

2091-1408 - Wago PCB footprint - Other - Other - 2091-1408-3
click to zoom
3D Models
2091-1408 - Wago - 3D model - Other - 2091-1408-3
click to zoom

2091-1408 Details

  • Manufacturer Part Number:

    2091-1408

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED POLYPHTHALAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2091-1408 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 2091-1408 connector is 0.6 Nm to 1.2 Nm (5-10 lbf-in).
  • Yes, the 2091-1408 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 2091-1408 connector is compatible with various industrial automation protocols, including PROFINET, EtherNet/IP, and Modbus TCP.
  • The 2091-1408 connector can accommodate cables with a maximum outer diameter of 12 mm (0.47 in).
  • Yes, the 2091-1408 connector is designed for use in harsh environments and outdoor applications, with an IP67 rating for protection against dust and water ingress.
