2091-1412 - Wago

Description: THT male header; 1.0 mm Ø solder pin; straight; Pin spacing 3.5 mm; 12-pole

Download 2091-1412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2091-1412 - Wago - PCB symbol
click to zoom
PCB Footprints

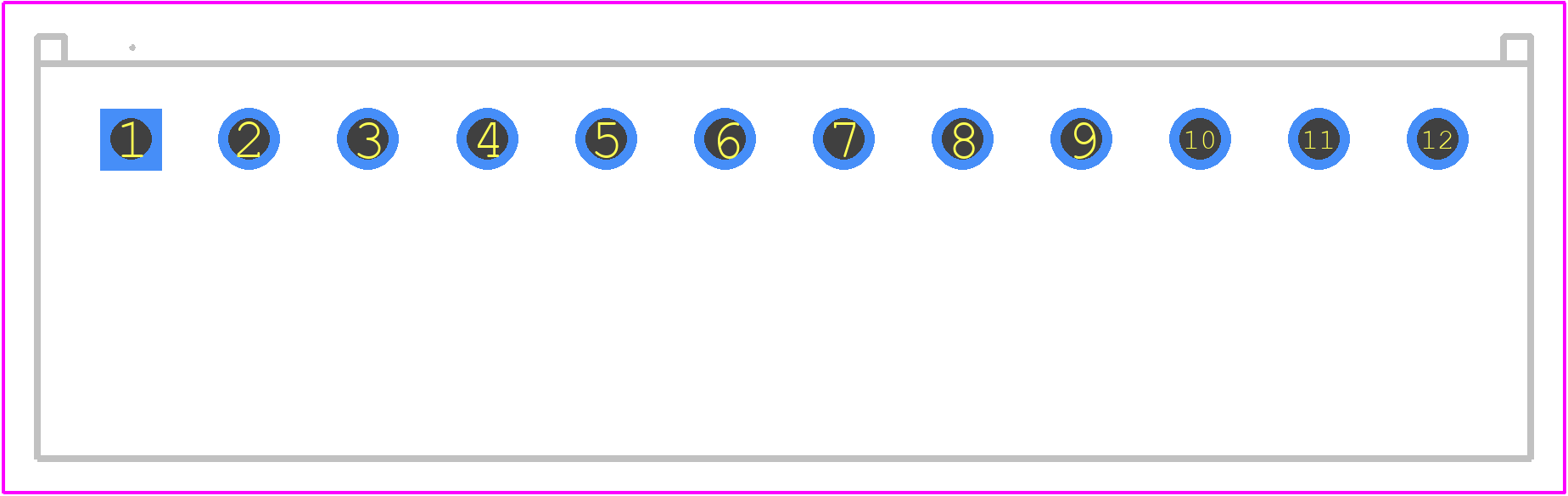

2091-1412 - Wago PCB footprint - Other - Other - 2091-1412-1
click to zoom
3D Models
2091-1412 - Wago - 3D model - Other - 2091-1412-1
click to zoom

2091-1412 Details

  • Manufacturer Part Number:

    2091-1412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED POLYPHTHALAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
