2091-1428 - Wago

Description: THT male header; 1.0 mm Ø solder pin; angled; Pin spacing 3.5 mm; 8-pole

Download 2091-1428 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2091-1428 - Wago - PCB symbol
click to zoom
PCB Footprints

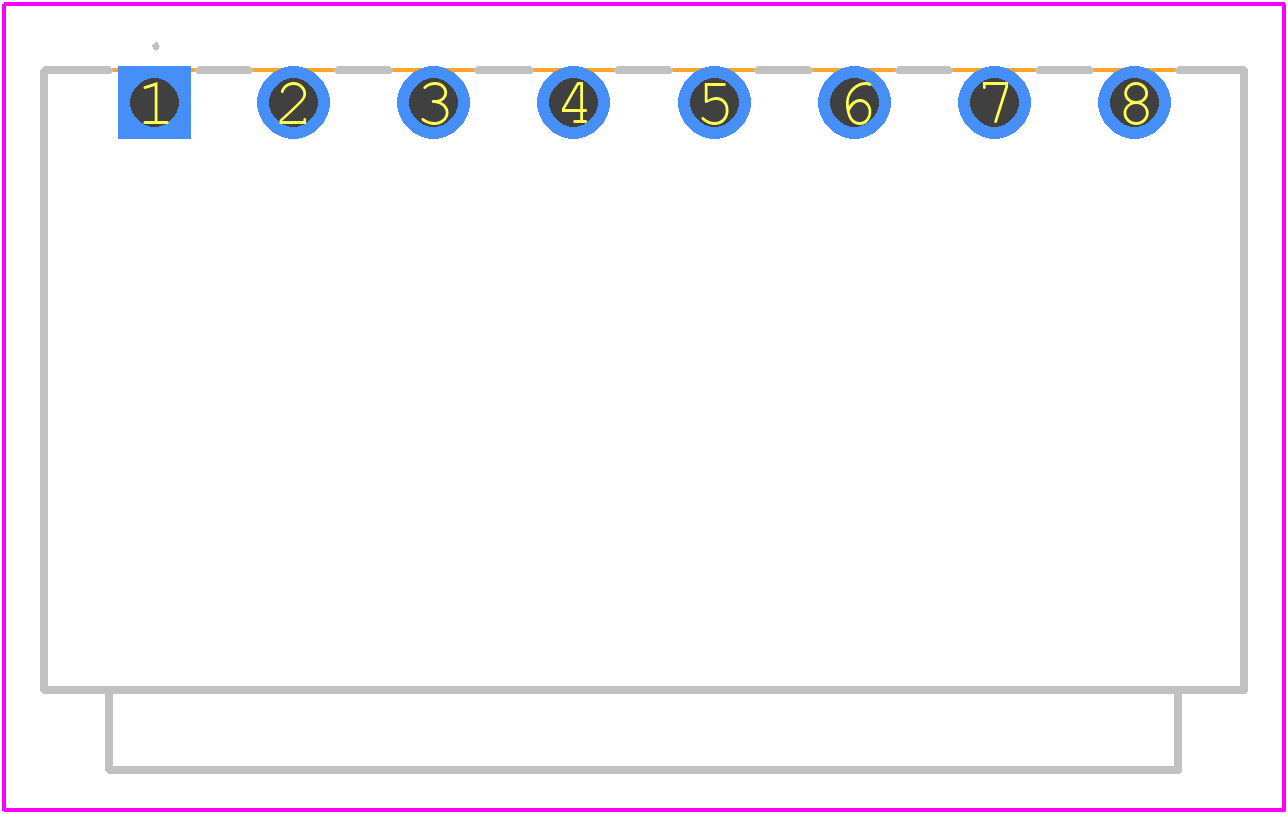

2091-1428 - Wago PCB footprint - Other - Other - 2091-1428-3
click to zoom
3D Models
2091-1428 - Wago - 3D model - Other - 2091-1428-3
click to zoom

2091-1428 Details

  • Manufacturer Part Number:

    2091-1428

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    PPA-GF, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

2091-1428 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 2091-1428 connector is suitable for outdoor use, as it has a IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2091-1428 connector is designed to be used with both solid and stranded wires, with a wire size range of 0.5 mm² to 2.5 mm².
  • Yes, the 2091-1428 connector is UL certified, meeting the requirements of UL 310, the standard for connectors and switches.
  • The operating temperature range of the 2091-1428 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2091-1428 Overview

Use the download button to access the 2091-1428 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2091-, or try a keyword search, such as Terminals and Terminal Blocks
