2092-1175 - Wago

Description: Conn Terminal Block 5 POS 5mm Solder ST Thru-Hole 16A Box

Download 2092-1175 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2092-1175 - Wago - PCB symbol
click to zoom

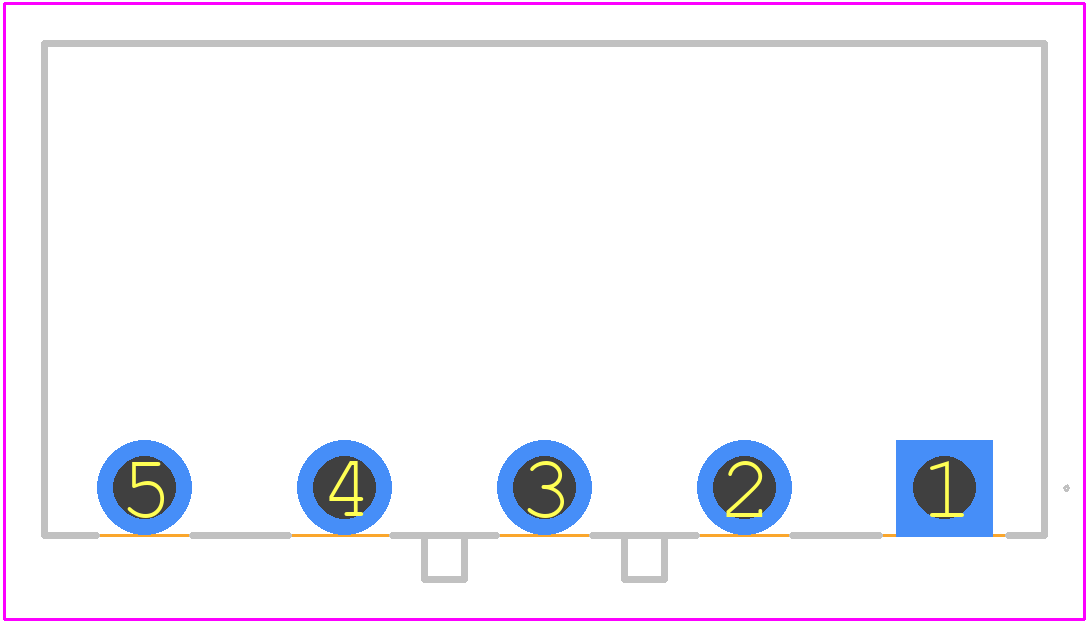

PCB Footprints
2092-1175 - Wago PCB footprint - Other - Other - 2092-1175-4
click to zoom

2092-1175 Details

  • Manufacturer Part Number:

    2092-1175

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED POLYPHTHALAMIDE

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    CONNECTOR

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;CUL;EN;IEC;UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

2092-1175 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) to ensure reliable connections.
  • Yes, the 2092-1175 connector is designed for outdoor use and meets the IP67 rating, providing protection against dust and water ingress.
  • Yes, the 2092-1175 connector is suitable for use with stranded wire, but it's recommended to use a wire with a minimum strand count of 30 to ensure reliable connections.
  • The maximum operating temperature for the 2092-1175 connector is 85°C (185°F), but it's recommended to derate the current carrying capacity at higher temperatures.
  • Yes, the 2092-1175 connector is UL certified (UL 310) and meets the requirements for use in industrial control and automation applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2092-1175 Overview

Use the download button to access the 2092-1175 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2092-, or try a keyword search, such as Terminals and Terminal Blocks
