The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) to ensure secure connections.
Yes, the 2092-1405 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
The 2092-1405 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
Yes, the 2092-1405 connector is designed to accept stranded wire, but it's essential to follow the manufacturer's guidelines for wire preparation and termination to ensure reliable connections.
The 2092-1405 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2092-1405 Overview

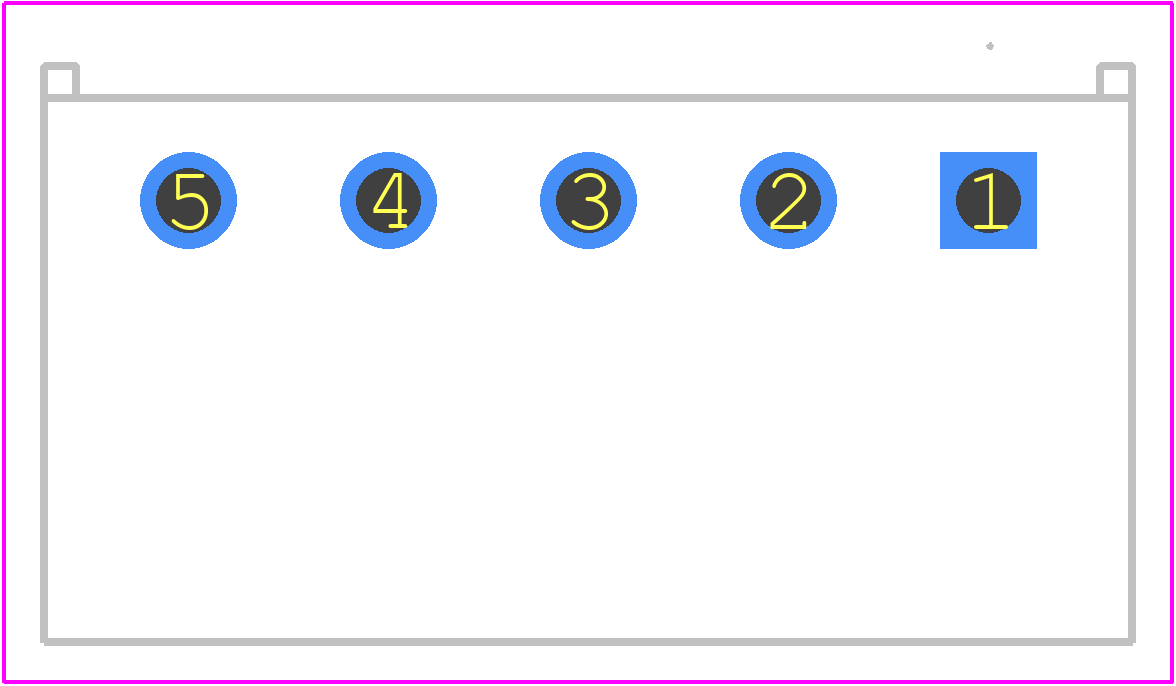

Use the download button to access the 2092-1405 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2092-,
or try a keyword search, such as Terminals and Terminal Blocks
