Part Image

2098978-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 3 | Number of Sections 1 | Number of Positions 52 | Contact Features: Mating Tab Width .64 MM | Mating Tab Thickness .64 MM | Mating Tab Width .11 INCH | Contact Mating Area Plating Material Tin | Mating Tab Thickness .8 MM | Mating Tab Width 2.8 MM | Mating Tab Thickness .025 INCH | Contact Type Tab | Mating Tab Thickness .031 INCH | Mating Tab Width .025 INCH | Dimensions: Connector Length

Download 2098978-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2098978-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

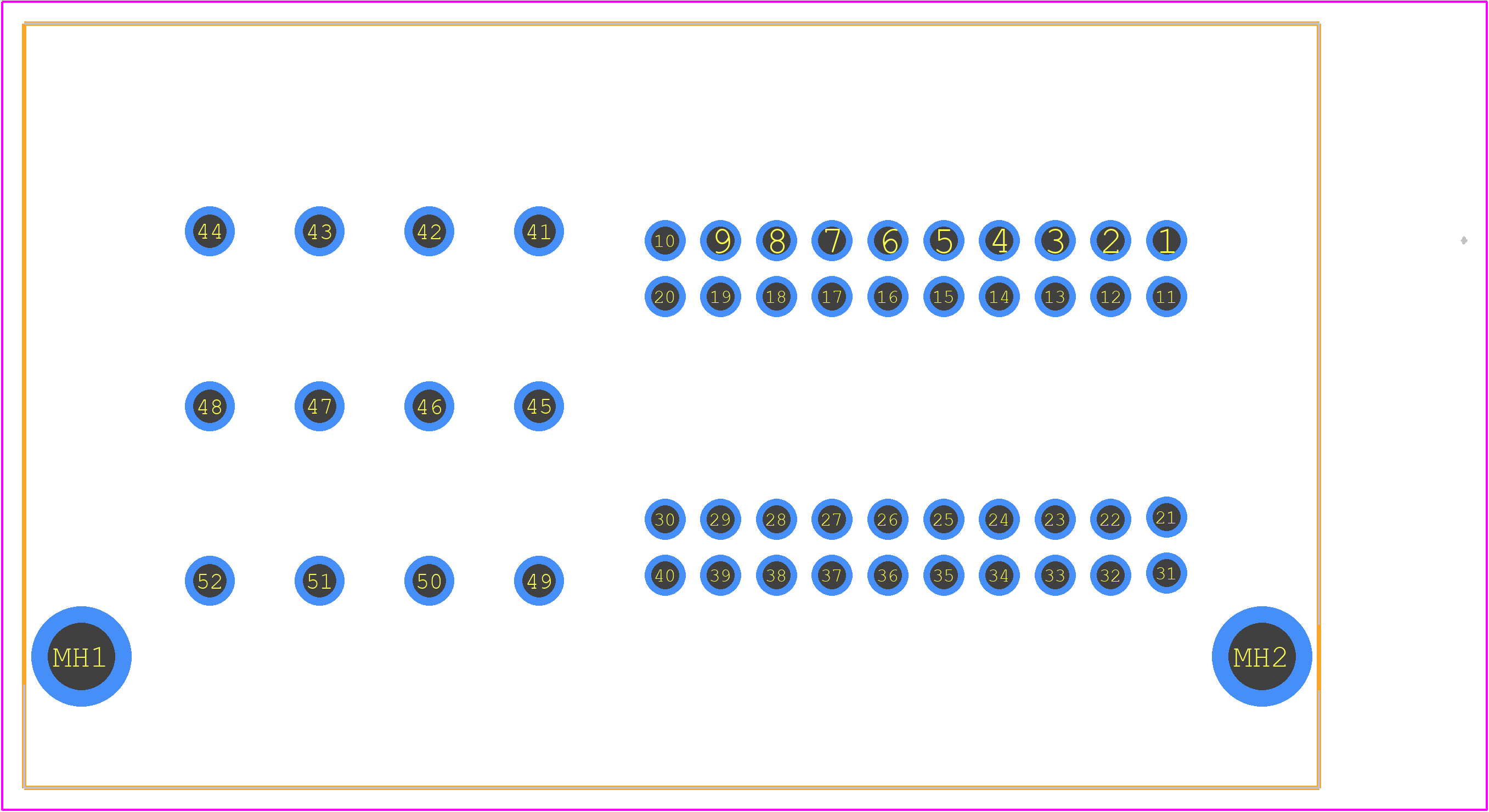

2098978-1 - TE Connectivity PCB footprint - Other - Other - 2098978-1-4
click to zoom
3D Models
2098978-1 - TE Connectivity - 3D model - Other - 2098978-1-4
click to zoom

2098978-1 Details

  • Manufacturer Part Number:

    2098978-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    1.37 inch

  • Body Length:

    2.32 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

2098978-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 2098978-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2098978-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 2098978-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and protection to maintain the connector's integrity in humid or wet environments.
  • The recommended wire size for the 2098978-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a suitable insulation material and temperature rating to ensure reliable connections and prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2098978-1 Overview

Use the download button to access the 2098978-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20989, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
