20TQC47MYFT - Panasonic

Description: Panasonic 47μF Solid Polymer Tantalum Capacitor, 20 V dc ±20%, TQC Series

Download 20TQC47MYFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

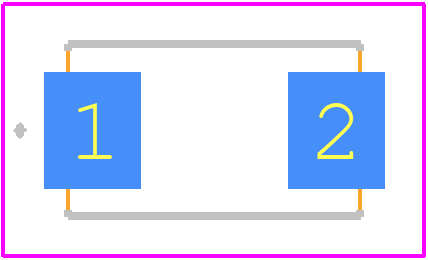

20TQC47MYFT - Panasonic PCB footprint - Other - Other - D15
click to zoom
3D Models
20TQC47MYFT - Panasonic  - 3D model - Other - D15
click to zoom

20TQC47MYFT Details

  • Manufacturer Part Number:

    20TQC47MYFT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    47 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    55 mΩ

  • Height:

    1.4 mm

  • JESD-609 Code:

    e4

  • Leakage Current:

    0.094 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    20 V

  • Ripple Current:

    1500 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Finish:

    Palladium/Gold (Pd/Au)

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

20TQC47MYFT Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper soldering and thermal management.
  • To mitigate inrush current, consider using a soft-start circuit or an NTC thermistor in series with the relay coil. This helps reduce the initial current surge and prevents damage to the relay or surrounding components.
  • The maximum allowable voltage drop across the relay contacts is typically around 100 mV. Exceeding this value may lead to contact degradation or failure. Ensure your design takes this into account to maintain reliable operation.
  • While the relay is rated for operation up to 85°C, it's essential to consider the derating curves provided in the datasheet. Be sure to account for temperature-related performance degradation and potential lifespan reduction in high-temperature applications.
  • To ensure reliable operation in high-vibration or shock-prone environments, consider using a relay socket or a secure mounting method. Additionally, ensure the PCB is properly secured and the relay is properly soldered to prevent mechanical stress or damage.
