210-8MS - CTS

Description: Switch DIP ON OFF SPST 8 Raised Slide 0.1A 20VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube

Download 210-8MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

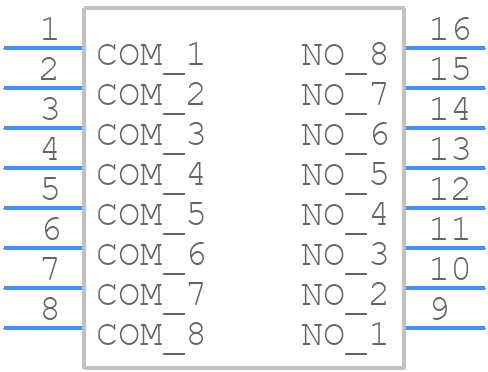

210-8MS - CTS - PCB symbol
click to zoom
PCB Footprints

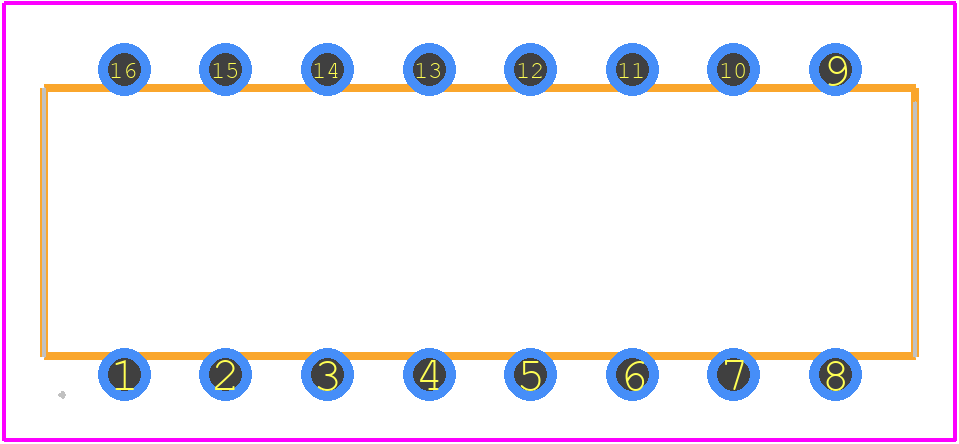

210-8MS - CTS PCB footprint - Other - Other - 210-8MS-2
click to zoom
3D Models
210-8MS - CTS - 3D model - Other - 210-8MS-2
click to zoom

210-8MS Details

  • Manufacturer Part Number:

    210-8MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    7.4

  • Body Breadth:

    6.7 mm

  • Body Height:

    3.8 mm

  • Body Length or Diameter:

    21.79 mm

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    .1A@20VDC

  • Contact Voltage(DC)-Max:

    20 V

  • Electrical Life:

    1000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    16

  • Packing Method:

    ANTI-STATIC TUBE

  • Sealing:

    BOTTOM SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

210-8MS Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 210-8MS is -40°C to +85°C, although it can withstand storage temperatures from -55°C to +125°C.
  • To ensure stability and reliability, make sure to follow the recommended PCB layout guidelines, use a high-quality crystal, and ensure the oscillator circuit is properly decoupled and shielded from noise.
  • The maximum frequency deviation of the 210-8MS is ±50 ppm over the entire operating temperature range.
  • Yes, the 210-8MS is designed to withstand high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
  • The 210-8MS can be programmed using a proprietary programming tool and software provided by CTS Corporation. Consult the programming guide for specific instructions.
