- Part Number 2102080-3
- Manufacturer TE Connectivity
- Pin Count 60
- Part Category Connector
- Package Category Other

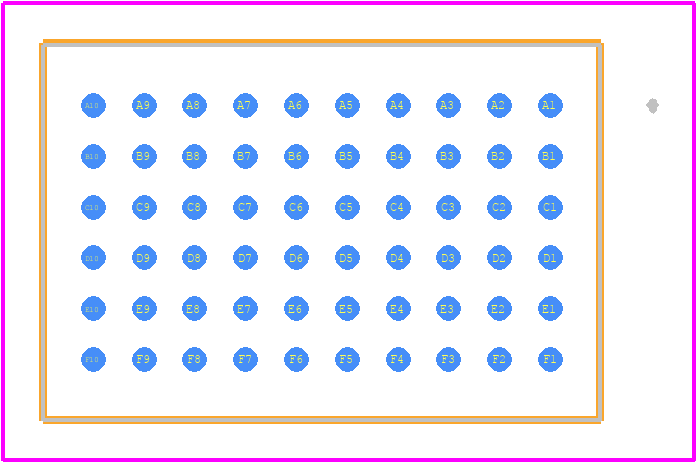

- Footprint Name Other - 2102080-3-1
- Released Date Jun 16, 2020
- Last Modified Date Dec 15, 2024 10:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
2102080-3 Details
-
Manufacturer Part Number:
2102080-3
-
Brand Name:
AMP
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
40 Weeks, 6 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
8.75
-
Body Breadth:
0.371 inch
-
Body Depth:
0.305 inch
-
Body Length:
0.547 inch
2102080-3 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 2102080-3 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult with TE Connectivity or a qualified engineer for specific guidance.
-
The 2102080-3 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
-
The 2102080-3 connector is designed to meet IP67 standards, providing protection against dust and water ingress. However, it's not recommended for use in applications with direct exposure to chemicals or extreme environmental conditions. Consult with TE Connectivity or a qualified engineer for specific guidance on environmental considerations.
