2102440-1 - TE Connectivity

Description: Body Features: Shell Plating Material Copper Alloy | Shell Finish Nickel | Configuration Features: Number of Positions 2 | Contact Features: Contact Type Receptacle | Contact Type (Module C) Socket/Pin | Contact Type (Module D) Socket/Pin | Contact Current Rating (Max) 1.5 AMP | Contact Type (Module A) Socket | Contact Type (Module B) Socket/Pin | Mechanical Attachment: Connector Mounting Type Board Mount | Panel Mount Feature Type D-Hole (Jam Nut) | Operation/Application: Circuit Application Power, Signal

Download 2102440-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2102440-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

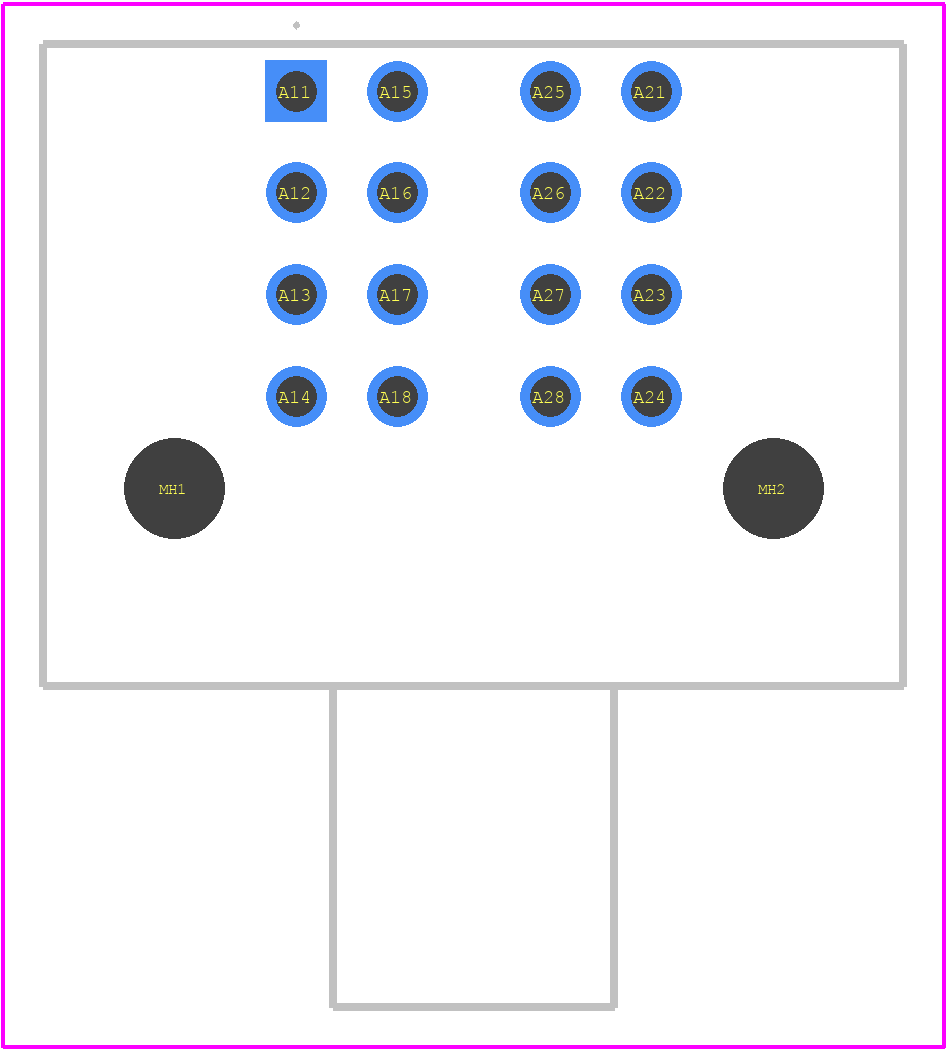

2102440-1 - TE Connectivity PCB footprint - Other - Other - 2102440-1-2
click to zoom
3D Models
2102440-1 - TE Connectivity - 3D model - Other - 2102440-1-2
click to zoom

2102440-1 Details

  • Manufacturer Part Number:

    2102440-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.61 inch

  • Body Depth:

    0.948 inch

  • Body Length:

    0.846 inch

  • Connector Type:

    RACK AND PANEL CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    1.5 A

  • Shell Finish:

    NICKEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

2102440-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2102440-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the compatibility and ensure reliable connections.
  • The 2102440-1 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95%. However, it's essential to follow TE Connectivity's guidelines for environmental sealing and protection to ensure reliable performance in harsh conditions.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow TE Connectivity's PCB layout guidelines, including keeping the PCB thickness within the recommended range (1.57 mm ± 0.13 mm) and maintaining a minimum clearance of 1.5 mm around the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2102440-1 Overview

Use the download button to access the 2102440-1 schematic symbol, PCB footprint, and 3D model.
