2102442-1 - TE Connectivity

Description: Body Features: Shell Plating Material Copper Alloy | Shell Finish Nickel | Configuration Features: Number of Positions 2 | Contact Features: Contact Type Receptacle | Contact Type (Module C) Socket/Pin | Contact Type (Module A) Socket | Contact Type (Module B) Socket/Pin | Contact Current Rating (Max) 1.5 AMP | Contact Type (Module D) Socket/Pin | Mechanical Attachment: Connector Mounting Type Board Mount | Panel Mount Feature Type D-Hole (Jam Nut) | Operation/Application: Circuit Application Power, Signal

Download 2102442-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2102442-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

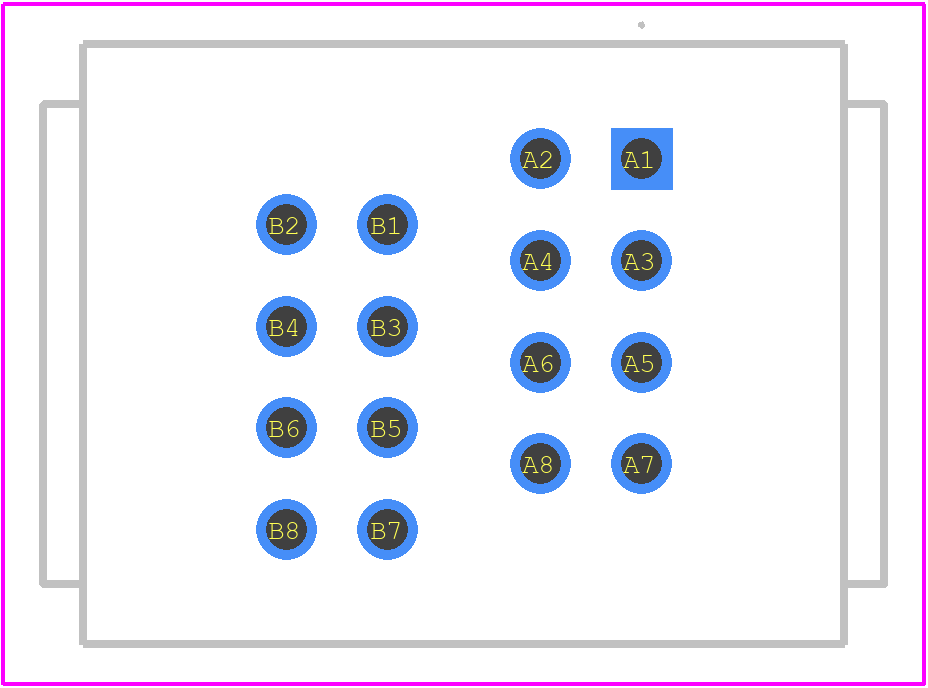

2102442-1 - TE Connectivity PCB footprint - Other - Other - 2102442-1-4
click to zoom
3D Models
2102442-1 - TE Connectivity - 3D model - Other - 2102442-1-4
click to zoom

2102442-1 Details

  • Manufacturer Part Number:

    2102442-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    1.5 A

  • Shell Finish:

    NICKEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

2102442-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
  • Yes, the 2102442-1 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow TE Connectivity's guidelines for vibration testing and validation.
  • The operating temperature range for the 2102442-1 connector is -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the connector's performance at extreme temperatures.
  • The 2102442-1 connector has a IP67 rating, which means it can withstand temporary immersion in water and exposure to certain chemicals, but it's recommended to follow TE Connectivity's guidelines for environmental testing and validation.
  • The recommended wire size for the 2102442-1 connector is 24-18 AWG (0.25-1.5 mm²), and it's recommended to use wires with a temperature rating of at least 125°C (257°F).
