21033111515 - HARTING

Description: M12 A-code 5pin male straight, SMT pcb mount, unshielded

Download 21033111515 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033111515 - HARTING - PCB symbol
click to zoom
PCB Footprints

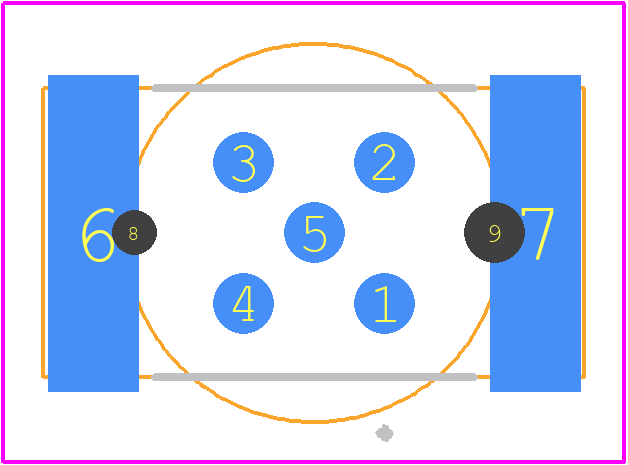

21033111515 - HARTING PCB footprint - Other - Other - 21033111515
click to zoom
3D Models
21033111515 - HARTING - 3D model - Other - 21033111515
click to zoom

21033111515 Details

  • Manufacturer Part Number:

    21033111515

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 60V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    5

21033111515 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 21033111515 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 21033111515 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 61373 Cat. 2.
  • Yes, the 21033111515 connector is designed for outdoor use and can withstand harsh environmental conditions, including temperatures from -40°C to 125°C, and IP67 ingress protection.
  • The 21033111515 connector is rated for up to 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 21033111515 connector is part of the HARTING Han series, which is a modular connector system that allows for easy mating and mixing of different connectors within the series.
