21033212830 - HARTING

Description: M12 A-code 8pin female straight pcb mount, shielded version + rear mount housing

Download 21033212830 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033212830 - HARTING - PCB symbol
click to zoom

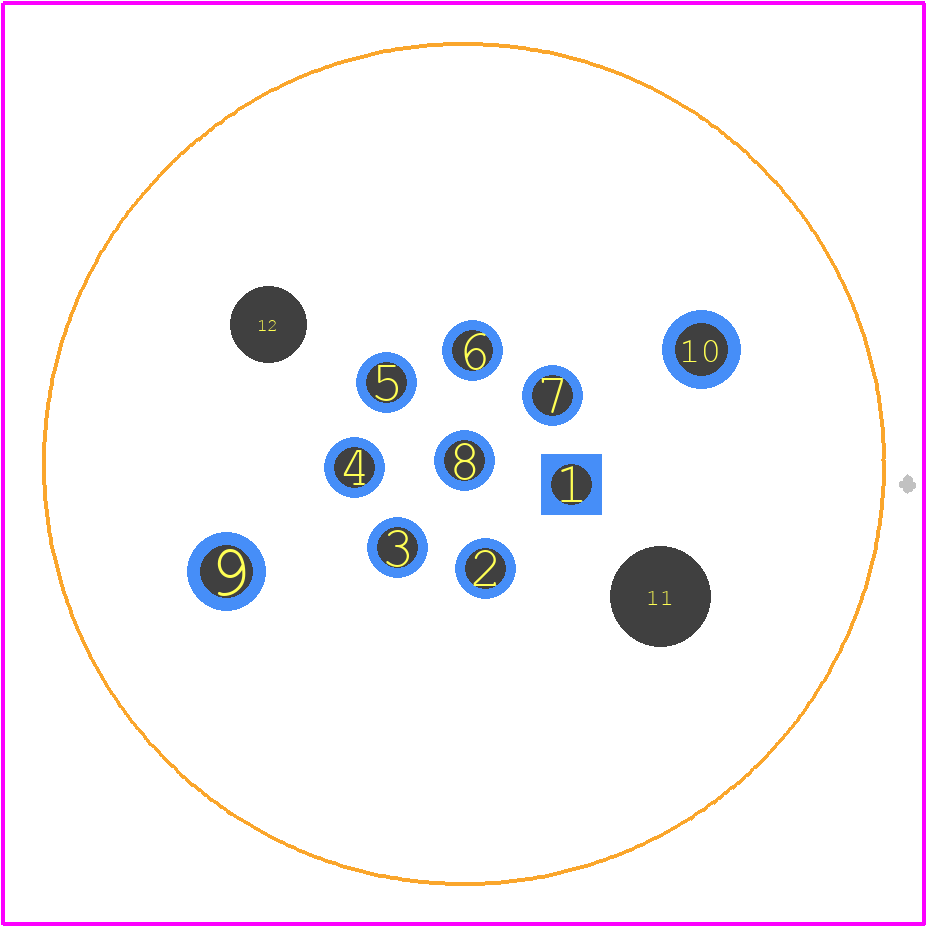

PCB Footprints
21033212830 - HARTING PCB footprint - Other - Other - 21033212830
click to zoom
3D Models
21033212830 - HARTING - 3D model - Other - 21033212830
click to zoom

21033212830 Details

  • Manufacturer Part Number:

    21033212830

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

21033212830 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 21033212830 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 21033212830 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • The 21033212830 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 21033212830 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 21033212830 connector is part of HARTING's Han-Modular series and is compatible with other Han-Modular products, allowing for flexible and modular system design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21033212830 Overview

Use the download button to access the 21033212830 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21033, or try a keyword search, such as Other Circular Connectors
