21033214401 - HARTING

Description: M12 A-code 4pin female angled pcb mount, shielded, rear mount

Download 21033214401 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033214401 - HARTING - PCB symbol
click to zoom
PCB Footprints

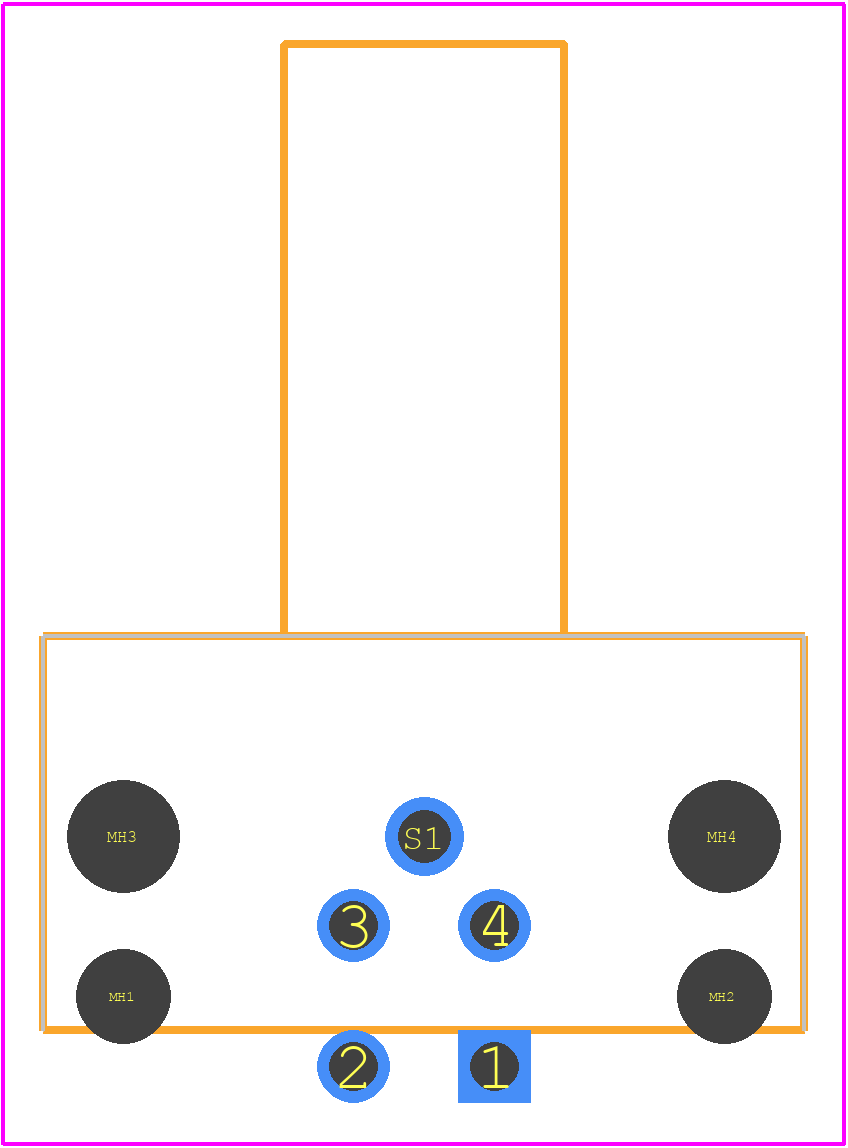

21033214401 - HARTING PCB footprint - Other - Other - 21033214401
click to zoom
3D Models
21033214401 - HARTING - 3D model - Other - 21033214401
click to zoom

21033214401 Details

  • Manufacturer Part Number:

    21033214401

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

21033214401 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 21033214401 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 21033214401 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 21033214401 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the 21033214401 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • The 21033214401 connector is designed to be compatible with other HARTING products and components. However, compatibility with third-party components should be verified through testing and consultation with HARTING's documentation and technical support.
