21033214501 - HARTING

Description: M12 A-code 5pin female angled pcb mount, shielded, rear mount

Download 21033214501 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033214501 - HARTING - PCB symbol
click to zoom
PCB Footprints

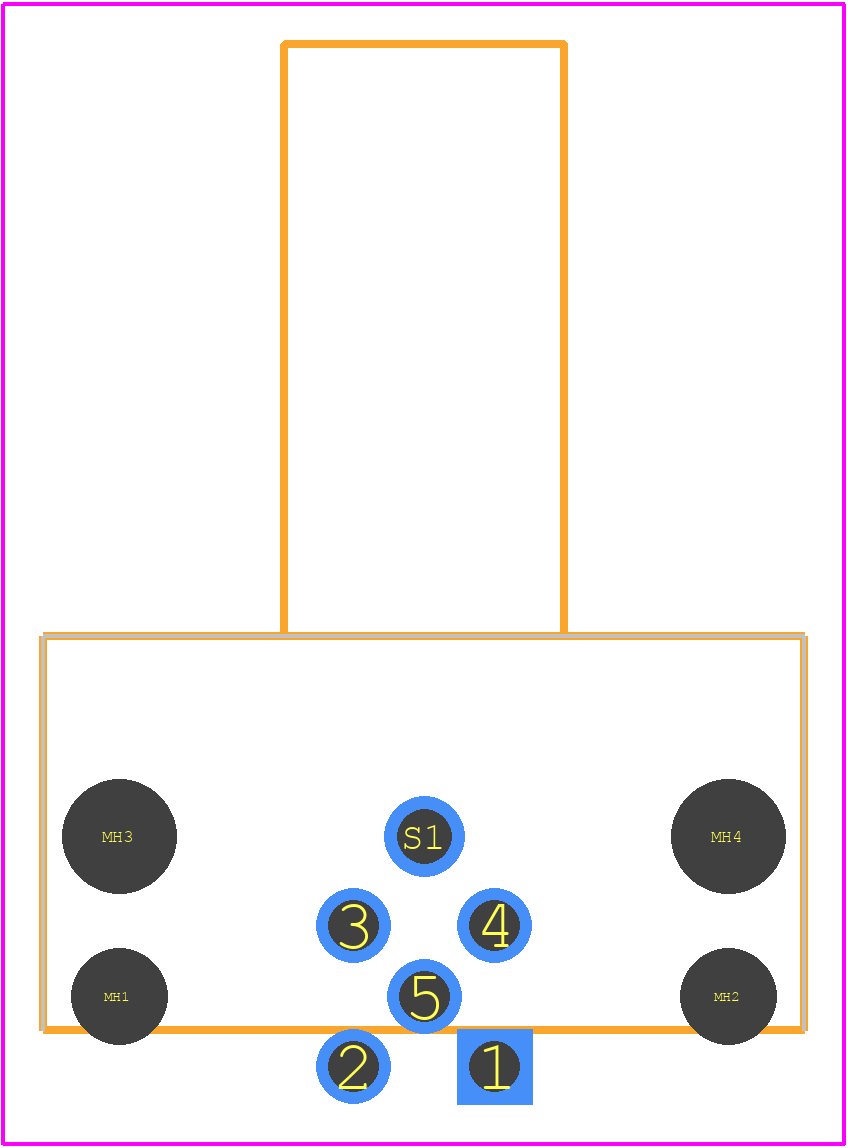

21033214501 - HARTING PCB footprint - Other - Other - 21033214501
click to zoom
3D Models
21033214501 - HARTING - 3D model - Other - 21033214501
click to zoom

21033214501 Details

  • Manufacturer Part Number:

    21033214501

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 60V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Material:

    COPPER-ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

21033214501 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 21033214501 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 21033214501 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The 21033214501 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The 21033214501 connector has a mating cycle rating of 500 cycles, according to HARTING's specifications.
  • Yes, the 21033214501 connector is designed to be compatible with other HARTING products and systems, including their Han-Modular series. However, it's essential to verify compatibility before integrating the connector into your system.
