21033216420 - HARTING

Description: M12 A-code 4pin female straight panel feed through pcb mount, IP67

Download 21033216420 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033216420 - HARTING - PCB symbol
click to zoom
PCB Footprints

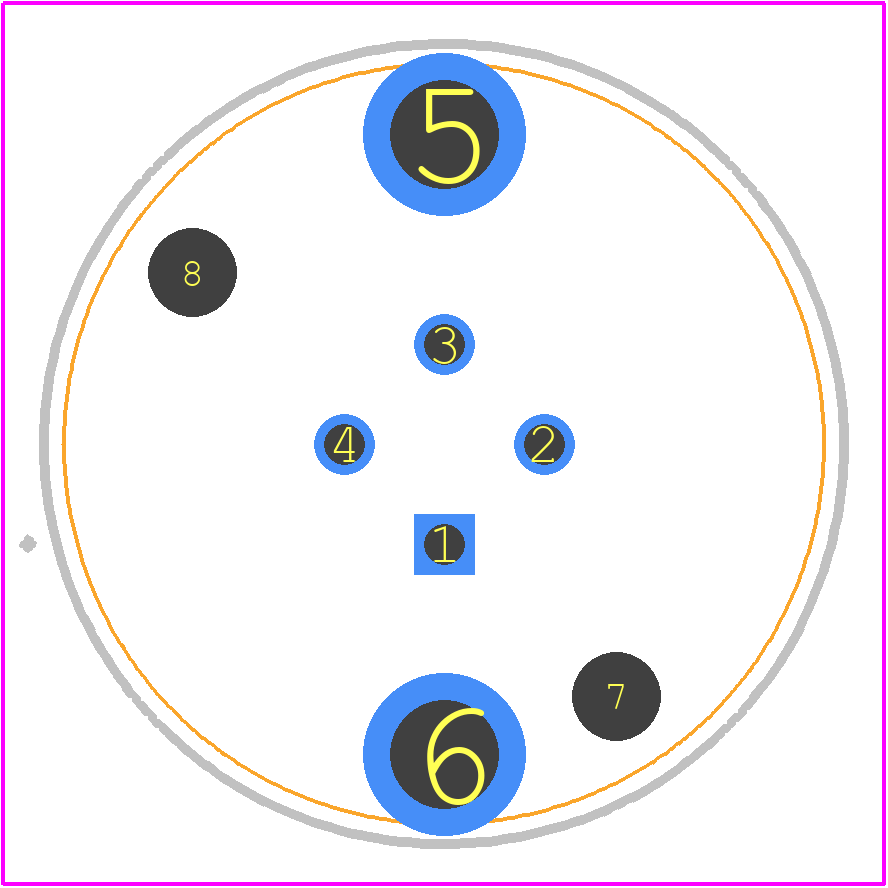

21033216420 - HARTING PCB footprint - Other - Other - 21033216420
click to zoom
3D Models
21033216420 - HARTING - 3D model - Other - 21033216420
click to zoom

21033216420 Details

  • Manufacturer Part Number:

    21033216420

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 250V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

21033216420 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.4 Nm to 0.6 Nm, as specified in the HARTING application notes.
  • Yes, the 21033216420 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10g acceleration.
  • Yes, the 21033216420 connector has an IP67 rating, making it suitable for outdoor use and resistant to dust and water ingress.
  • The maximum operating temperature range for the 21033216420 connector is -40°C to 125°C, as specified in the datasheet.
  • The 21033216420 connector is resistant to many common chemicals, but it's recommended to consult the HARTING chemical resistance chart for specific information on the connector's compatibility with certain chemicals.
