21033412518 - HARTING

Description: M12 B-code 5pin female straight pcb mount (w/o housing), shielded version

Download 21033412518 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033412518 - HARTING - PCB symbol
click to zoom

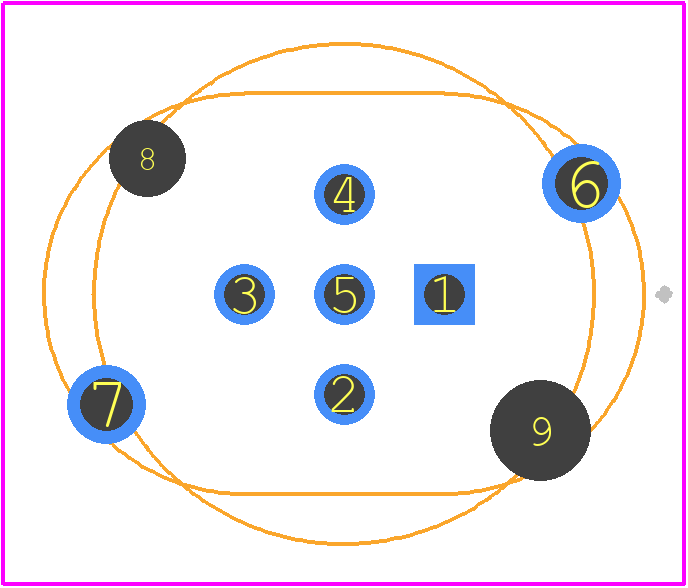

PCB Footprints
21033412518 - HARTING PCB footprint - Other - Other - 21033412518
click to zoom
3D Models
21033412518 - HARTING - 3D model - Other - 21033412518
click to zoom

21033412518 Details

  • Manufacturer Part Number:

    21033412518

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 50V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA;IEC;UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

21033412518 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 21033412518 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 21033412518 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration, as per the IEC 61984 standard.
  • Yes, the 21033412518 connector is designed to be resistant to harsh environments, including high humidity and exposure to chemicals. It meets the IP67 rating, which means it can withstand immersion in water up to 1 meter for 30 minutes.
  • The mating cycle life of the 21033412518 connector is 500 cycles, as per the IEC 61984 standard.
  • Yes, the 21033412518 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors, allowing for flexibility in design and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21033412518 Overview

Use the download button to access the 21033412518 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21033, or try a keyword search, such as Other Circular Connectors
