21033812806 - HARTING

Description: M12 X-code 8pin female PCB without housing, straight, Cat6A

Download 21033812806 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

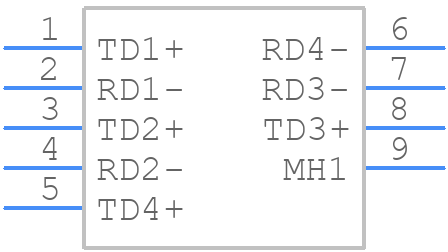

21033812806 - HARTING - PCB symbol
click to zoom
PCB Footprints

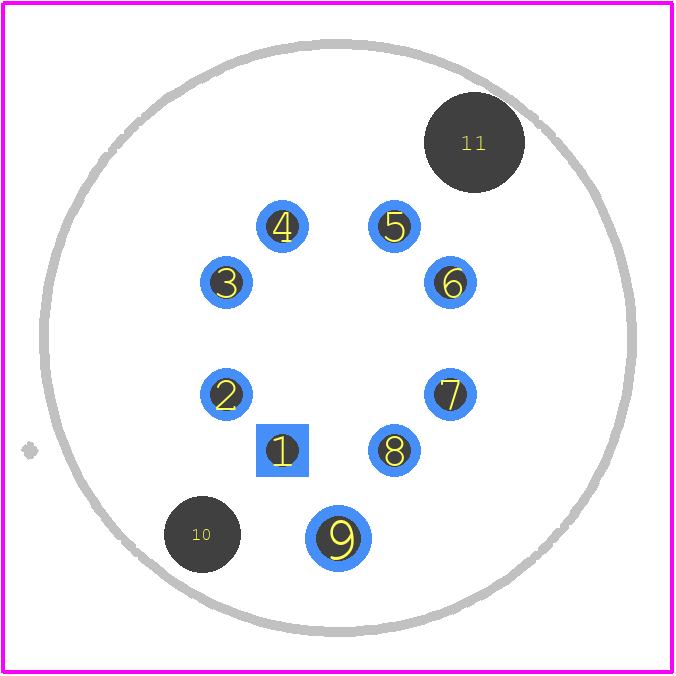

21033812806 - HARTING PCB footprint - Other - Other - 21033812806
click to zoom
3D Models
21033812806 - HARTING - 3D model - Other - 21033812806
click to zoom

21033812806 Details

  • Manufacturer Part Number:

    21033812806

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 0.5A; RATED VOLTAGE: 50V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA;IEC;UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

21033812806 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 21033812806 connector is -40°C to 125°C, as per the HARTING Technology Group's specifications.
  • Yes, the 21033812806 connector is designed to withstand high-vibration environments, making it suitable for applications in industries such as transportation, aerospace, and industrial automation.
  • The 21033812806 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 21033812806 connector is designed to be resistant to chemicals and fuels, making it suitable for use in harsh environments such as those found in the aerospace, automotive, and industrial industries.
  • The 21033812806 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21033812806 Overview

Use the download button to access the 21033812806 schematic symbol, PCB footprint, and 3D model.
