21033814413 - HARTING

Description: M12 D-code 4pin female, angled pcb mount with fixing hole (exit down) IP20

Download 21033814413 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033814413 - HARTING - PCB symbol
click to zoom
PCB Footprints

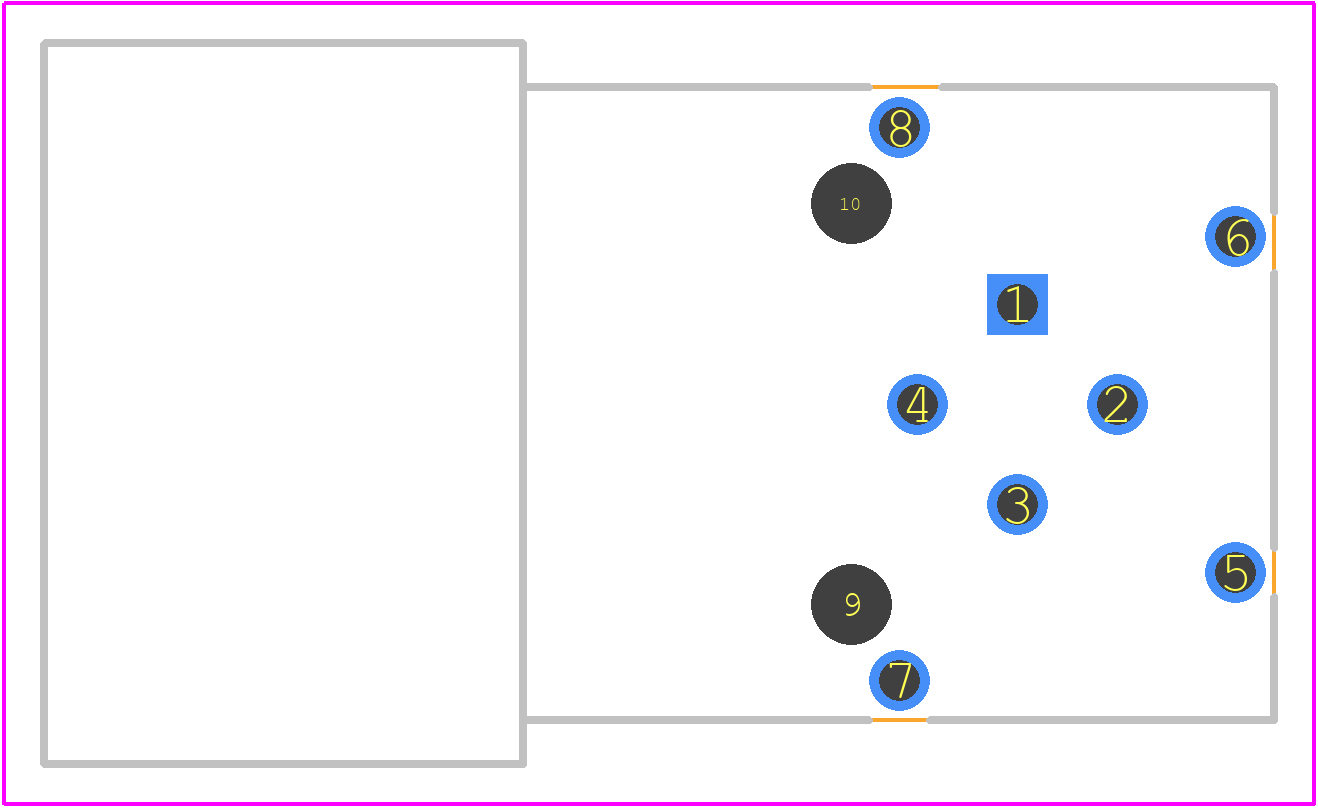

21033814413 - HARTING PCB footprint - Other - Other - 21033814413
click to zoom
3D Models
21033814413 - HARTING - 3D model - Other - 21033814413
click to zoom

21033814413 Details

  • Manufacturer Part Number:

    21033814413

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 50V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA;IEC;UL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

21033814413 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 21033814413 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 21033814413 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 21033814413 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the 21033814413 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • The 21033814413 connector is designed to be compatible with specific mating connectors from HARTING, such as the 21033814423. It's essential to consult HARTING's documentation and ensure compatibility before using the connector in your application.
