21033814421 - HARTING

Description: M12 D-code 4pin female angled pcb connector, SMT, with transformer, shielded, PoE enabled, (w/o housing)

Download 21033814421 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

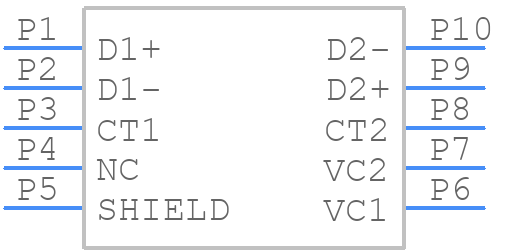

21033814421 - HARTING - PCB symbol
click to zoom
PCB Footprints
21033814421 - HARTING PCB footprint - Other - Other - 21033814420-1
click to zoom
3D Models
21033814421 - HARTING - 3D model - Other - 21033814420-1
click to zoom

21033814421 Details

  • Manufacturer Part Number:

    21033814421

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Additional Feature:

    RATED CURRENT(SIGNAL): 3A; RATED VOLTAGE: 57V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

21033814421 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 21033814421 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 21033814421 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 61373 Cat. 2.
  • Yes, the 21033814421 connector is designed for outdoor use and can withstand harsh environmental conditions, including temperatures from -40°C to 125°C, and IP67 ingress protection.
  • The 21033814421 connector is rated for up to 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 21033814421 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
