21033814435 - HARTING

Description: M12 D-code 4pin female, angled pcb mount with fixing hole, IP20

Download 21033814435 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033814435 - HARTING - PCB symbol
click to zoom

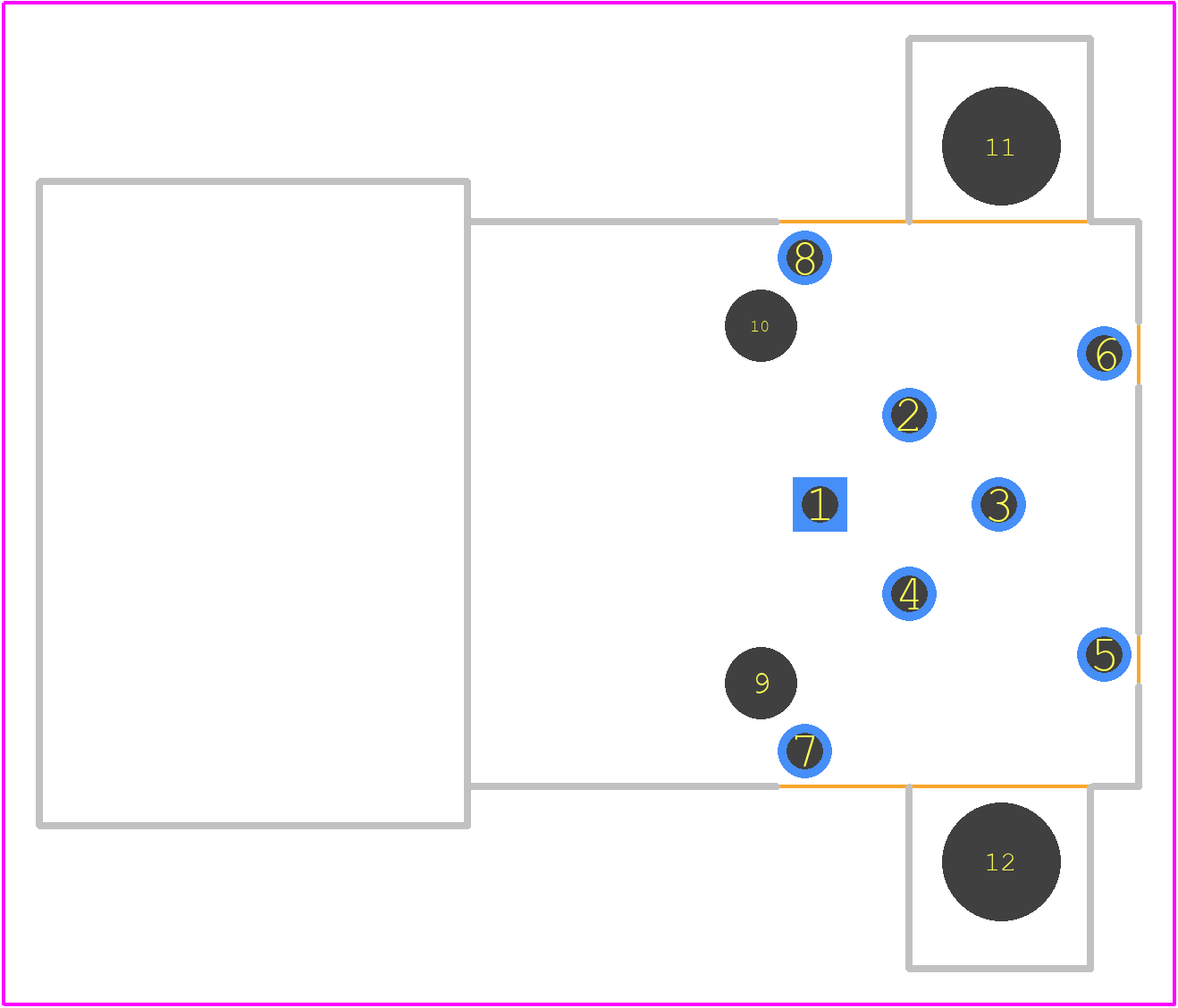

PCB Footprints
21033814435 - HARTING PCB footprint - Other - Other - 21033814435
click to zoom
3D Models
21033814435 - HARTING - 3D model - Other - 21033814435
click to zoom

21033814435 Details

  • Manufacturer Part Number:

    21033814435

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

21033814435 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 21033814435 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 21033814435 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The 21033814435 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 21033814435 connector is suitable for outdoor use due to its IP67 rating and UV-resistant materials, which can withstand exposure to sunlight and moisture.
  • The 21033814435 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating occur.
