21033814436 - HARTING

Description: M12 D-code 4pin female, angled pcb mount w/o fixing hole, IP67

Download 21033814436 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033814436 - HARTING - PCB symbol
click to zoom
PCB Footprints

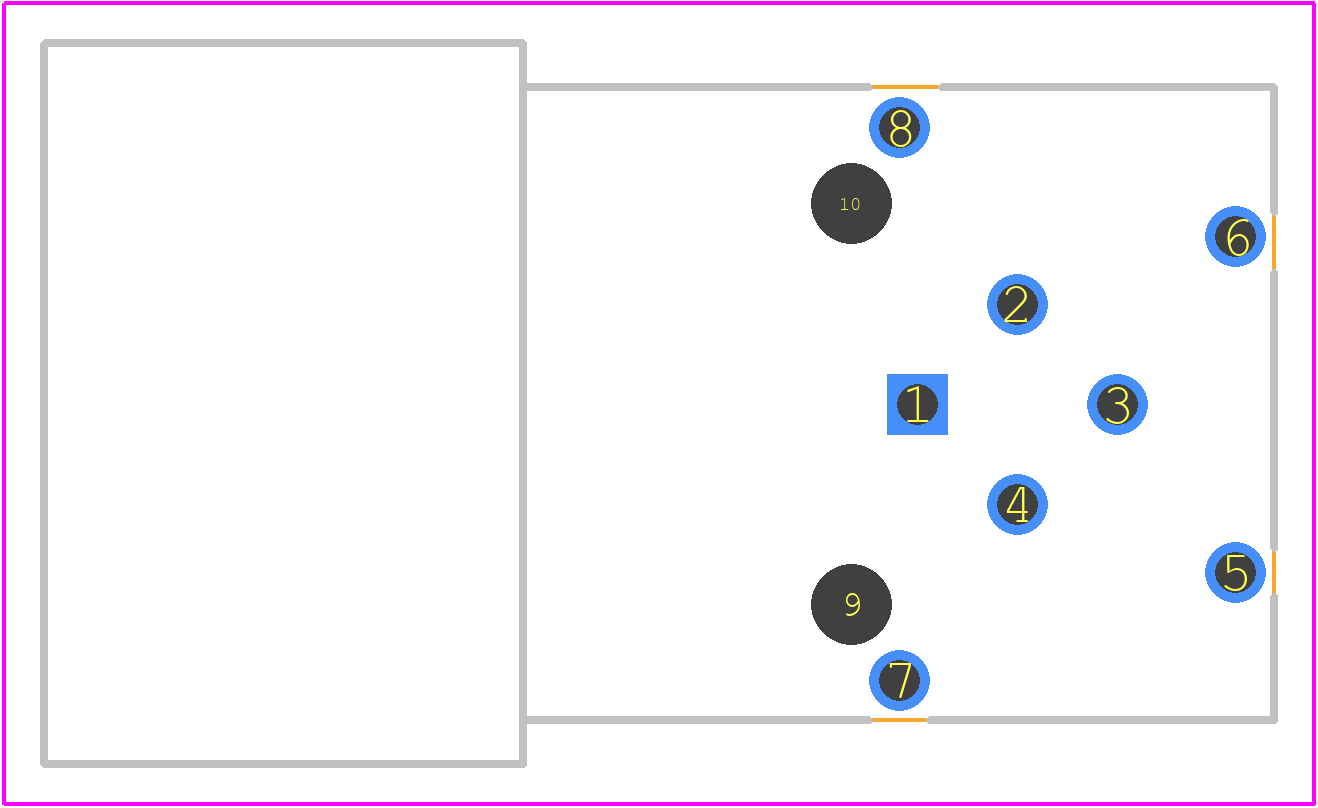

21033814436 - HARTING PCB footprint - Other - Other - 21033814436
click to zoom
3D Models
21033814436 - HARTING - 3D model - Other - 21033814436
click to zoom

21033814436 Details

  • Manufacturer Part Number:

    21033814436

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 250V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

21033814436 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 21033814436 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 21033814436 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration, as per the IEC 61984 standard.
  • Yes, the 21033814436 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the HARTING Technology Group's environmental specifications and testing data to ensure the connector meets your specific application requirements.
  • The 21033814436 connector has a mating cycle life of at least 500 cycles, as per the IEC 61984 standard.
  • The 21033814436 connector is rated for a maximum current of 10A per contact, making it suitable for moderate-current applications. However, it's essential to consult the HARTING Technology Group's current-carrying capacity specifications and testing data to ensure the connector meets your specific application requirements.
