21033814440 - HARTING

Description: M12 D-code 4pin female angled pcb mount, shielded

Download 21033814440 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033814440 - HARTING - PCB symbol
click to zoom
PCB Footprints

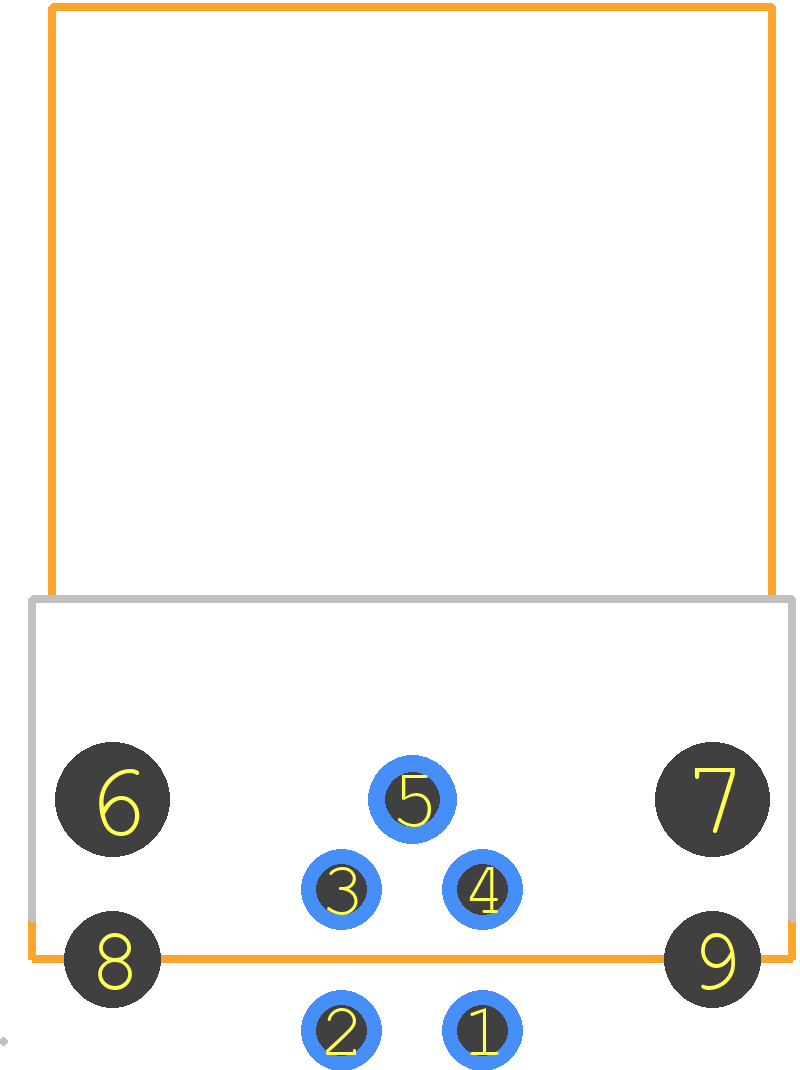

21033814440 - HARTING PCB footprint - Other - Other - 21033814440
click to zoom
3D Models
21033814440 - HARTING - 3D model - Other - 21033814440
click to zoom

21033814440 Details

  • Manufacturer Part Number:

    21033814440

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 250V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Material:

    COPPER-ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

21033814440 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's recommended to consult the HARTING application notes for specific guidance.
  • Yes, the 21033814440 connector is designed to withstand high-vibration environments, but it's recommended to consult with HARTING's technical support for specific application guidance.
  • The 21033814440 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors, but compatibility with other HARTING connector series should be verified with HARTING's technical support.
  • The maximum operating temperature for the 21033814440 connector is 125°C, but it's recommended to consult the datasheet and application notes for specific temperature ratings and derating guidelines.
  • The 21033814440 connector is designed to be resistant to harsh environments, but its performance in specific environments should be verified with HARTING's technical support. Additional sealing or protective measures may be required for extreme environments.
