21033814802 - HARTING

Description: M12 X-code 8pin female PCB with front panel mounting, angled, Cat6A (w/ housing 21033012003)

Download 21033814802 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033814802 - HARTING - PCB symbol
click to zoom
PCB Footprints

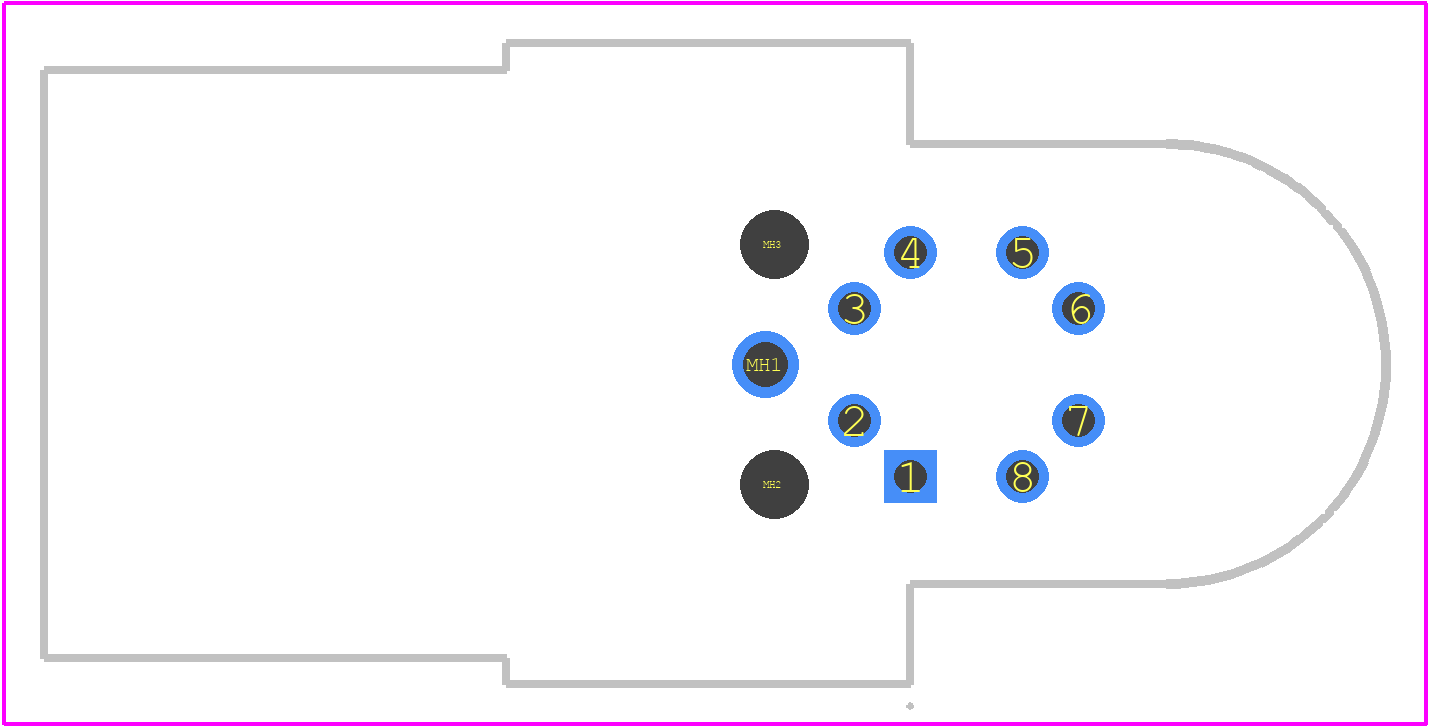

21033814802 - HARTING PCB footprint - Other - Other - 21033814802-6
click to zoom
3D Models
21033814802 - HARTING - 3D model - Other - 21033814802-6
click to zoom

21033814802 Details

  • Manufacturer Part Number:

    21033814802

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Additional Feature:

    SHIELDED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

21033814802 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the HARTING application notes for specific guidance.
  • Yes, the 21033814802 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and securing of the connector to prevent damage or disconnection.
  • The 21033814802 connector has an IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to consider additional protection measures, such as sealing or conformal coating, depending on the specific application.
  • The 21033814802 connector is designed to be compatible with other HARTING products. However, compatibility with third-party components should be verified through testing and validation to ensure reliable operation.
  • The 21033814802 connector is rated for operation in temperatures ranging from -40°C to 125°C. However, it's essential to consider derating and thermal management in high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21033814802 Overview

Use the download button to access the 21033814802 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21033, or try a keyword search, such as Other Circular Connectors
