21033814809 - HARTING

Description: M12 X-code 8pin female PCB with rear panel mounting, angled, Cat6A (w/ housing 21033012000) (individual piece)

Download 21033814809 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033814809 - HARTING - PCB symbol
click to zoom
PCB Footprints

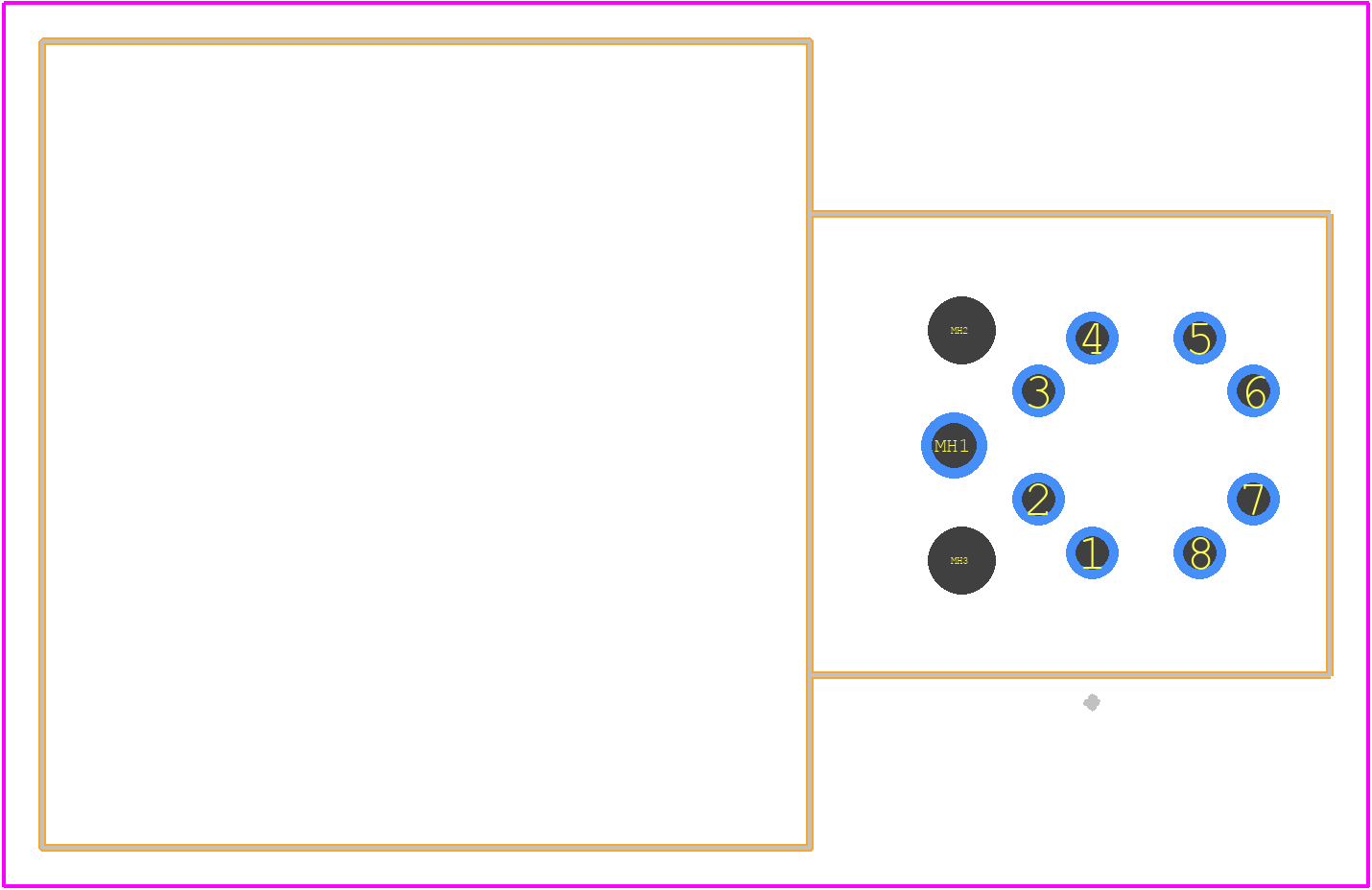

21033814809 - HARTING PCB footprint - Other - Other - 21033814809-10
click to zoom
3D Models
21033814809 - HARTING - 3D model - Other - 21033814809-10
click to zoom

21033814809 Details

  • Manufacturer Part Number:

    21033814809

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 0.5A; RATED VOLTAGE: 50V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA;IEC;UL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

21033814809 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 21033814809 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 21033814809 connector is designed to withstand high-vibration environments, making it suitable for applications in transportation, industrial, and other sectors where vibration is a concern.
  • Yes, the 21033814809 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's application notes for specific guidance on environmental considerations.
  • The 21033814809 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating occur.
  • The 21033814809 connector is part of the HARTING Han-Modular series and is compatible with other connectors within this series. However, it's essential to consult the datasheet and HARTING's documentation to ensure compatibility with specific connectors and applications.
