21033814810 - HARTING

Description: M12 X-code 8pin female PCB with front panel mounting, angled, Cat6A (w/ housing 21033012003) (individual piece)

Download 21033814810 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033814810 - HARTING - PCB symbol
click to zoom
PCB Footprints

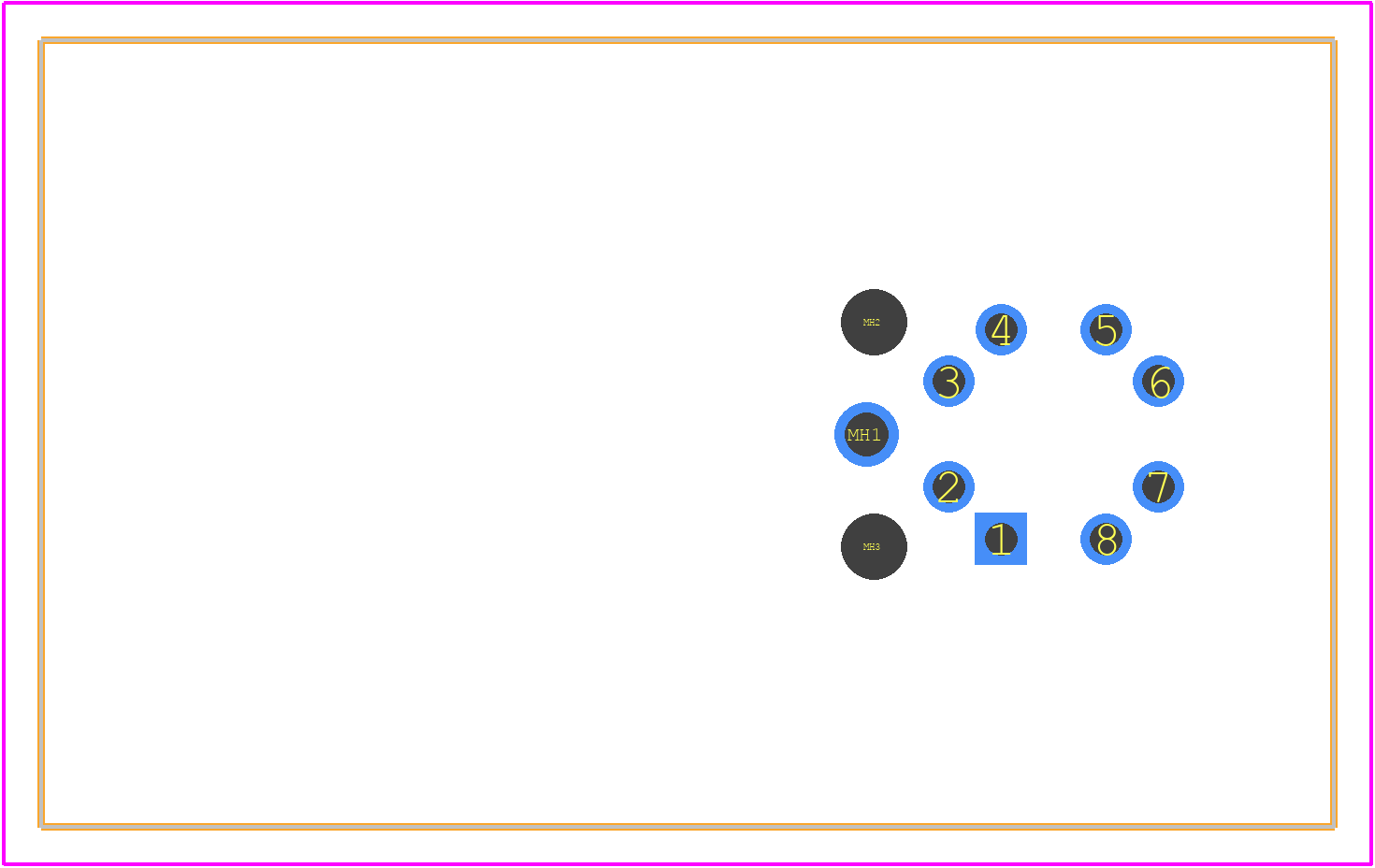

21033814810 - HARTING PCB footprint - Other - Other - 21033814810-2
click to zoom
3D Models
21033814810 - HARTING - 3D model - Other - 21033814810-2
click to zoom

21033814810 Details

  • Manufacturer Part Number:

    21033814810

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    RATED CURRENT(SIGNAL): 0.5A; RATED VOLTAGE: 50V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA;IEC;UL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

21033814810 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the connector is designed to be used in harsh environments, including outdoor applications, and meets IP67 and IP69K standards for ingress protection.
  • Yes, the connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g according to IEC 60068-2-6.
  • The connector is designed to operate in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 21033814810 connector is part of the HARTING Han series, which is designed to be compatible with other Han connectors and accessories.
