21033814825 - HARTING

Description: M12 X-code 8pin female straight pcb connector, SMT, w/ transformer, 10Gbit, shielded, PoE enabled (w/o housing)

Download 21033814825 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

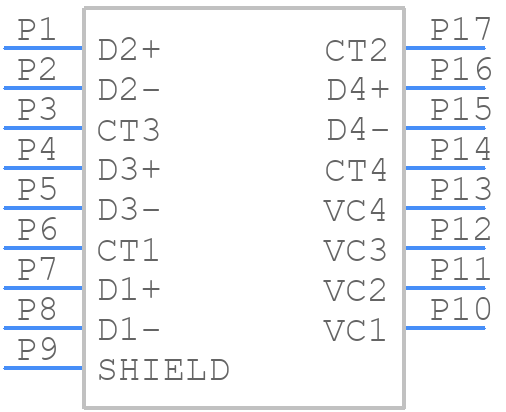

21033814825 - HARTING - PCB symbol
click to zoom
PCB Footprints
21033814825 - HARTING PCB footprint - Other - Other - 21033814822-2
click to zoom
3D Models
21033814825 - HARTING - 3D model - Other - 21033814822-2
click to zoom

21033814825 Details

  • Manufacturer Part Number:

    21033814825

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Additional Feature:

    RATED CURRENT(SIGNAL): 0.8A; RATED VOLTAGE: 57V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8
