21033814826 - HARTING

Description: M12 X-code 8pin female angled pcb connector, SMT, w/ transformer, 1Gbit, shielded, PoE enabled (w/ housing 21033012006)

Download 21033814826 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

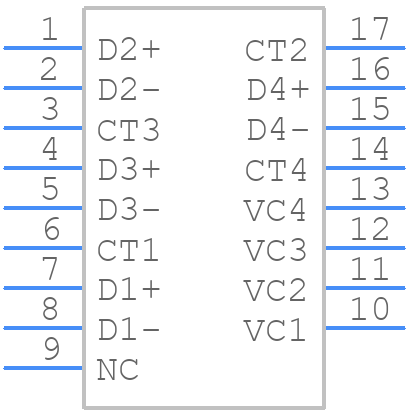

21033814826 - HARTING - PCB symbol
click to zoom
PCB Footprints

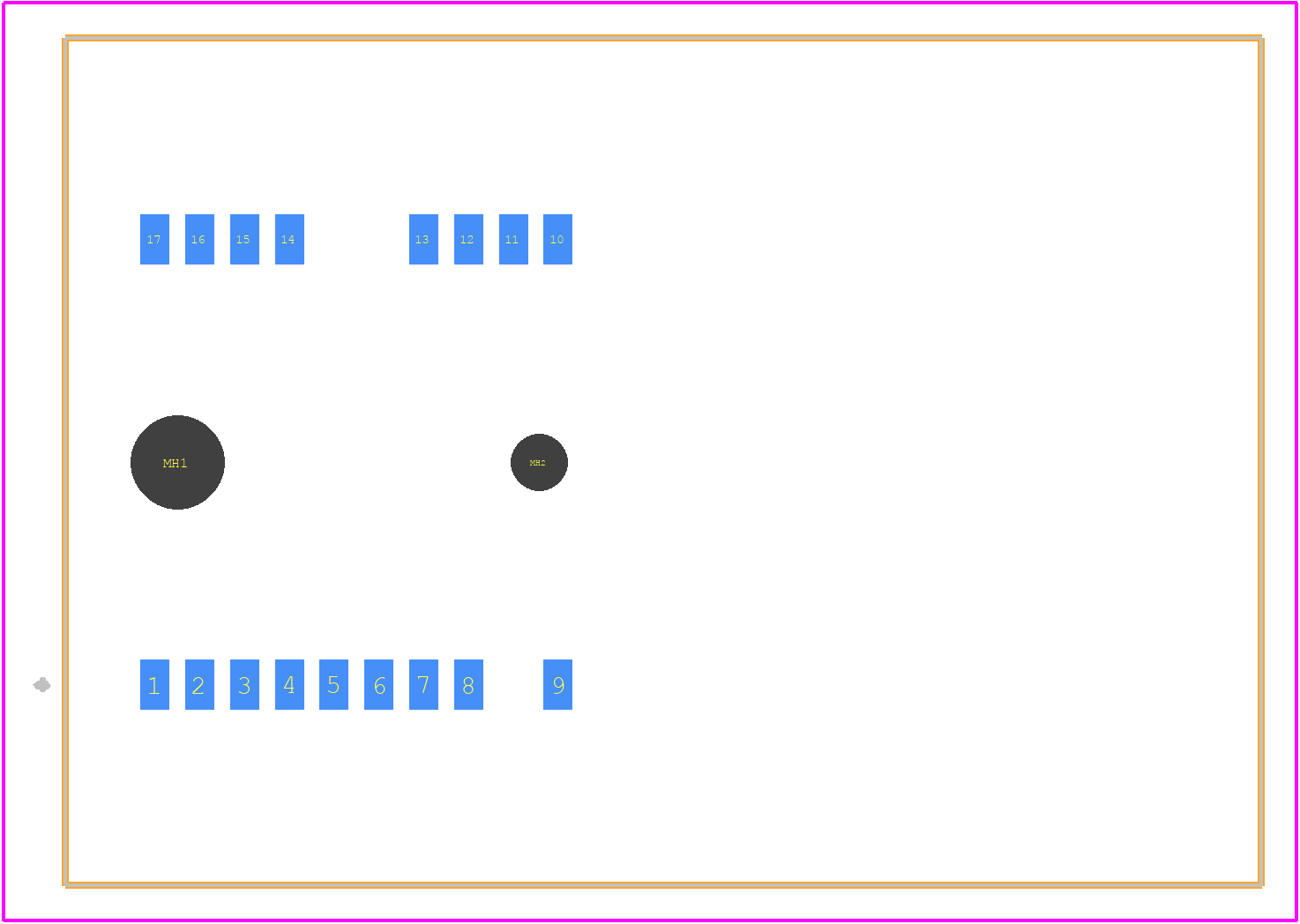

21033814826 - HARTING PCB footprint - Other - Other - 21033814826-3
click to zoom
3D Models
21033814826 - HARTING - 3D model - Other - 21033814826-3
click to zoom

21033814826 Details

  • Manufacturer Part Number:

    21033814826

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Additional Feature:

    RATED CURRENT(SIGNAL): 0.8A; RATED VOLTAGE: 57V

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8

21033814826 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 21033814826 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 21033814826 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 21033814826 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's application notes for specific guidance on environmental considerations.
  • The 21033814826 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating occur.
  • The 21033814826 connector is designed to be compatible with other HARTING products within the same series, but it's essential to consult the datasheet and HARTING's documentation to ensure compatibility with specific products or custom applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21033814826 Overview

Use the download button to access the 21033814826 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21033, or try a keyword search, such as Other Circular Connectors
